STPS40SM120CTN

Obsolete

STMicroelectronics

DIODE ARRAY SCHOTTKY 120V TO220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STPS40SM120CTN

Obsolete

STMicroelectronics

DIODE ARRAY SCHOTTKY 120V TO220

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STPS40SM120CTN

Current - Average Rectified (Io) (per Diode)	20 A
Current - Reverse Leakage @ Vr	275 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction	150 °C

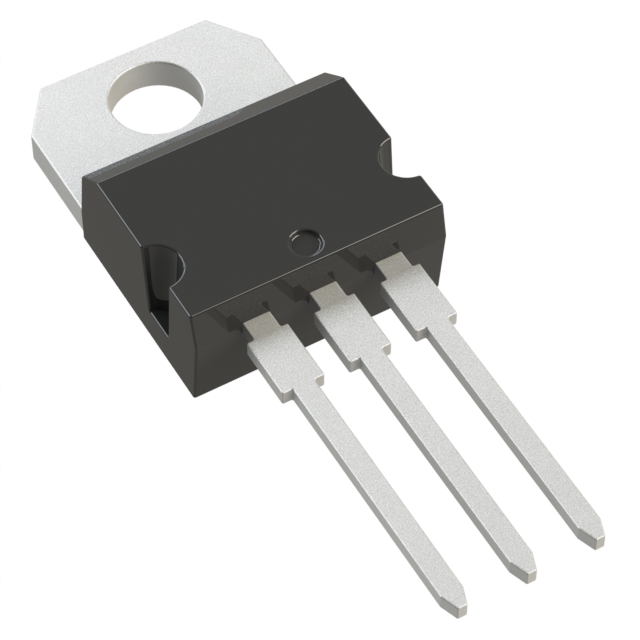

Package / Case	TO-220-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB Narrow Leads
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	120 V
Voltage - Forward (Vf) (Max) @ If [Max]	830 mV

STPS40SM100C Series

100 V, 40 A dual Low Leakage Power Schottky rectifier

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction	Current - Reverse Leakage @ Vr	Package / Case	Speed	Technology	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Diode Configuration	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If [Max]
STMicroelectronics STPS40SM100CG-TR	100 V	150 °C	45 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	Schottky	20 A	D2PAK	810 mV	Surface Mount	1 Pair Common Cathode
STMicroelectronics STPS40SM80CT	80 V		50 µA	TO-220-3	200 mA 500 ns	Schottky	20 A	TO-220	800 mV	Through Hole	1 Pair Common Cathode	175 °C
STMicroelectronics STPS40SM120CT	120 V	150 °C	275 µA	TO-220-3	200 mA 500 ns	Schottky	20 A	TO-220		Through Hole	1 Pair Common Cathode		830 mV
STMicroelectronics STPS40SM120CTN	120 V	150 °C	275 µA	TO-220-3	200 mA 500 ns	Schottky	20 A	TO-220AB Narrow Leads		Through Hole	1 Pair Common Cathode		830 mV
STMicroelectronics STPS40M120CR	120 V	150 °C	370 µA	I2PAK TO-262-3 Long Leads TO-262AA	200 mA 500 ns	Schottky	20 A	I2PAK	790 mV	Through Hole	1 Pair Common Cathode
STMicroelectronics STPS40L45CG	45 V	150 °C	600 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	Schottky	20 A	D2PAK	530 mV	Surface Mount	1 Pair Common Cathode
STMicroelectronics STPS40SM100CT	100 V	150 °C	45 µA	TO-220-3	200 mA 500 ns	Schottky	20 A	TO-220	810 mV	Through Hole	1 Pair Common Cathode
STMicroelectronics STPS40M60CG-TR	60 V	150 °C		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	Schottky	20 A	D2PAK	595 mV	Surface Mount	1 Pair Common Cathode
STMicroelectronics STPS40L45CT	45 V	150 °C	600 µA	TO-220-3	200 mA 500 ns	Schottky	20 A	TO-220	530 mV	Through Hole	1 Pair Common Cathode
STMicroelectronics STPS40SM100CG	100 V	150 °C	45 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	Schottky	20 A	D2PAK	810 mV	Surface Mount	1 Pair Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.94
		50	$ 2.33
		100	$ 2.00
		500	$ 1.78
		1000	$ 1.52

Description

General part information

STPS40SM100C Series

This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

Packaged in TO-220AB, I2PAK and D2PAK, this device is particularly suited for use in notebook, game station, LCD TV and desktop adapters, providing these applications with a good efficiency at both low and high load.
