BG208VACP

Active

Pflitsch

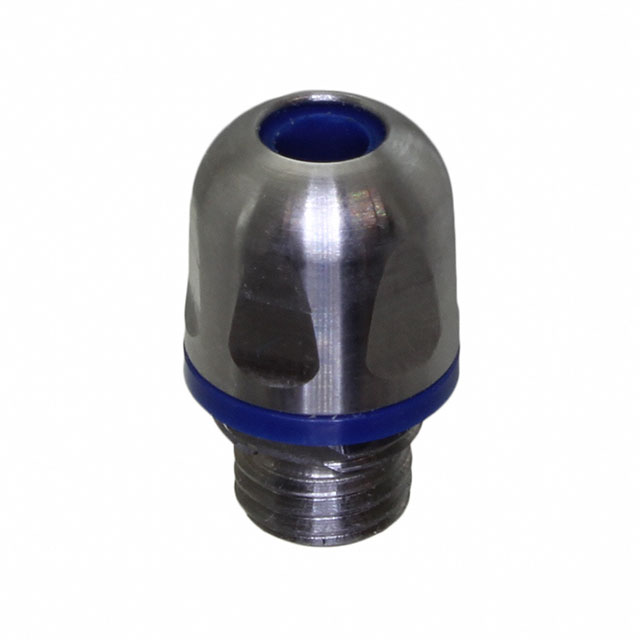

CABLE GLAND 4-4.5MM M8 S STEEL

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 4-4.5MM M8 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	BG208VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.177 "
Outside Cable Diameter (Max) [Max] [diameter]	4.5 mm
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Panel Hole Size [diameter]	8 mm
Panel Hole Size [diameter]	0.315 in
Thread Length	0.157 "
Thread Length	4 mm
Thread Size	M8x1
Type	Cable Gland

Part	Type	Ingress Protection	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Thread Length	Thread Length	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Color
Pflitsch BG208VACP	Cable Gland	IP66 IP68 IP69	8 mm	0.315 in	0.157 "	4 mm	Sealing Ring	Stainless Steel	0.177 "	4.5 mm	85 °C	-40 °C	0.157 in	4 mm	M8x1	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M8x1 Silver

Technical documentation and resources
