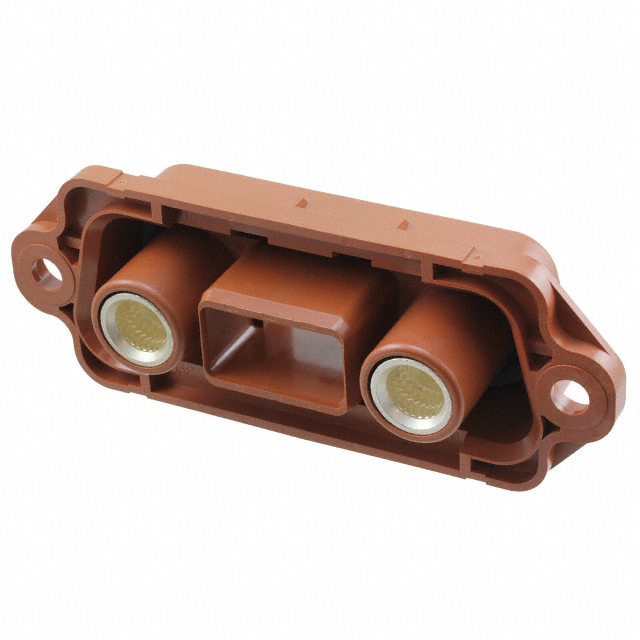

Specification	DW1R002ZH1

Color	Brown
Connector Style	Rack and Panel
Connector Type	Receptacle, Male Pins
Contact Finish	Silver
Current Rating	200 A
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	2
Number of Positions Loaded	All
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-25 °C
Power Contacts (Typical)	2
Voltage Rating	600 V

DW1 Series

Part	Voltage Rating	Material Flammability Rating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Color	Number of Positions Loaded	Number of Positions	Contact Finish	Connector Type	Connector Style	Power Contacts (Typical)	Contact Termination	Pin or Socket	Wire Gauge	Type
JAE Electronics DW1R002ZH1	600 V	UL94 V-0	200 A	115 °C	-25 °C	Panel Mount	Brown	All	2	Silver	Male Pins Receptacle	Rack and Panel	2
JAE Electronics DW1P04K4F1			2 A							Tin				Crimp	Pin	22 AWG	Signal
