Specification	EZ-200-TF-RP

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-200
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Jack, Male Pin
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	3 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

EZ-200 Series

Part	Connector Style	Frequency - Max	Cable Group	Impedance	Fastening Type	Center Contact Material	Number of Ports	Shield Termination	Connector Type	Mounting Type	Housing Color	Contact Termination	Body Finish	Dielectric Material	Mating Cycles	Body Material	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Features
McGill Microwave Systems EZ-200-BF-X	BNC	4 GHz	LMR-200	50 Ohm	Bayonet Lock	Beryllium Copper	1	Crimp	Female Socket Jack	Free Hanging (In-Line)	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Gold	125 °C	-40 °C

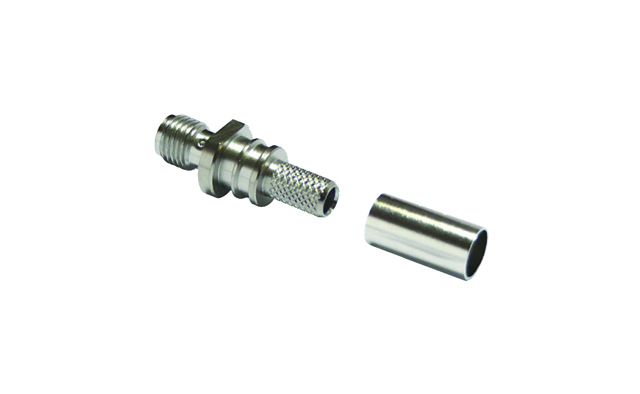

McGill Microwave Systems EZ-200-SF-SS-X	SMA	6000 MHz	LMR-200	50 Ohm	Threaded	Beryllium Copper	1	Crimp	Female Socket Jack	Free Hanging (In-Line)	Silver	Push On		Polytetrafluoroethylene (PTFE)	500 cycles	Stainless Steel	Gold	125 °C	-55 °C	500 V
McGill Microwave Systems EZ-200-TM-RA-X	TNC	6000 MHz	LMR-200	50 Ohm	Threaded	Brass	1	Crimp	Male Pin Plug	Free Hanging (In-Line) Right Angle	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Gold	125 °C	-55 °C	500 V
McGill Microwave Systems EZ-200-SM-RA-SS-X	SMA	6000 MHz	LMR-200	50 Ohm	Threaded	Beryllium Copper	1	Crimp	Male Pin Plug	Free Hanging (In-Line) Right Angle	Silver	Push On		Polytetrafluoroethylene (PTFE)	500 cycles	Stainless Steel	Gold	125 °C	-55 °C	500 V
McGill Microwave Systems EZ-200-TM-RP	RP-TNC	3 GHz	LMR-200	50 Ohm	Threaded	Beryllium Copper	1	Crimp	Female Socket Plug	Free Hanging (In-Line)	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)		Brass	Gold	85 °C	-40 °C	500 V
McGill Microwave Systems EZ-200-BM-X	BNC	4 GHz	LMR-200	50 Ohm	Bayonet Lock	Beryllium Copper	1	Crimp	Male Pin Plug	Free Hanging (In-Line)	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Gold	125 °C	-40 °C

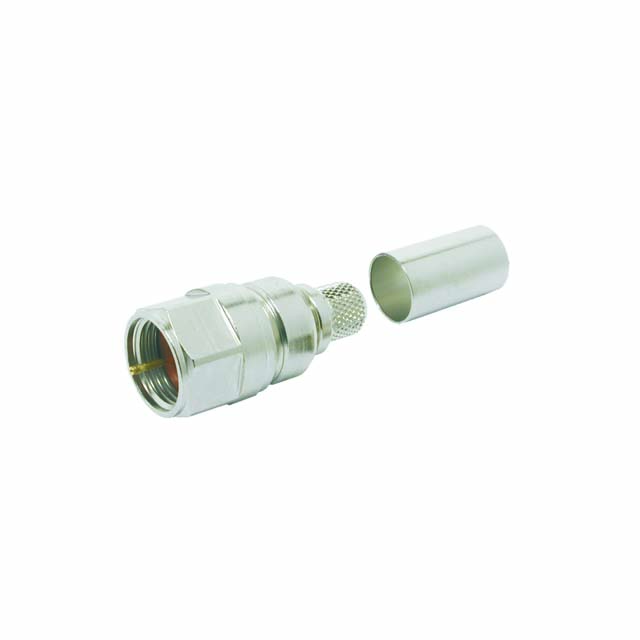

McGill Microwave Systems EZ-200-FM-75-X	F Type	1 GHz	LMR-200-75	75 Ohm	Threaded		1	Crimp	Male Pin Plug	Free Hanging (In-Line)	Silver	Push On	Nickel				Gold	85 °C	-40 °C		Field Installable
McGill Microwave Systems EZ-200-SM-X	SMA	6000 MHz	LMR-200	50 Ohm	Threaded	Beryllium Copper	1	Crimp	Male Pin Plug	Free Hanging (In-Line)	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Gold	125 °C	-40 °C

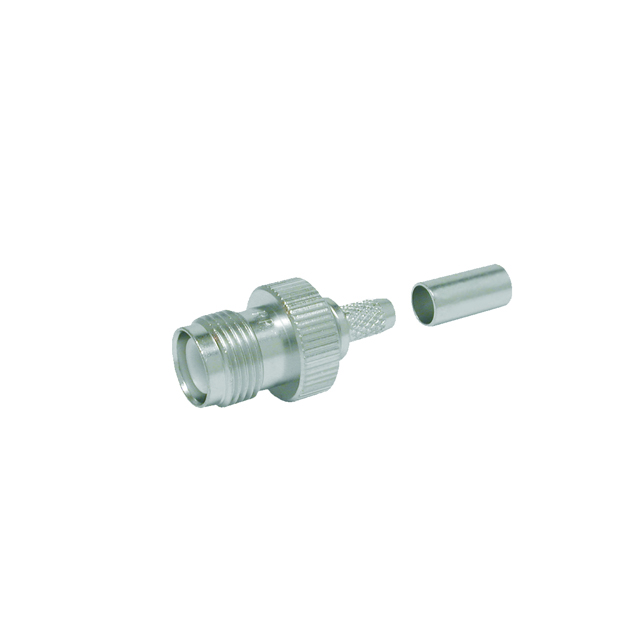

McGill Microwave Systems EZ-200-TF-RP	RP-TNC	3 GHz	LMR-200	50 Ohm	Threaded	Beryllium Copper	1	Crimp	Jack Male Pin	Free Hanging (In-Line)	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)		Brass	Gold	85 °C	-40 °C	500 V

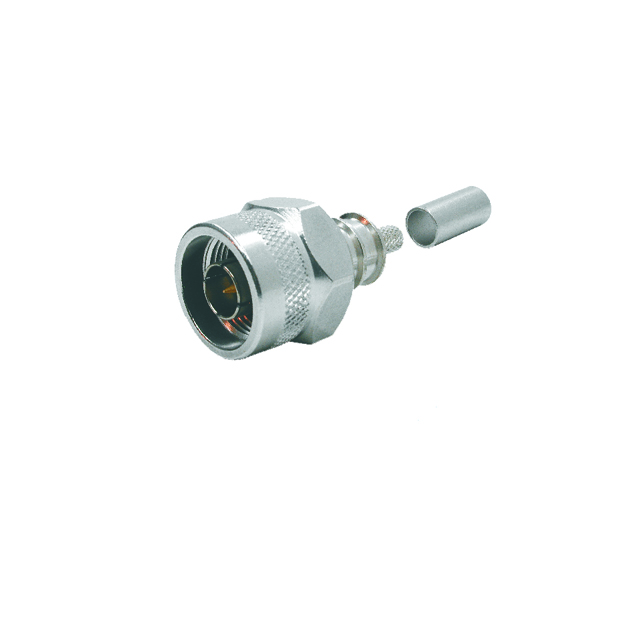

McGill Microwave Systems EZ-200-NMH-X	N Type	6000 MHz	LMR-200	50 Ohm	Threaded	Beryllium Copper	1	Crimp	Male Pin Plug	Free Hanging (In-Line)	Silver	Push On	White Bronze	Polytetrafluoroethylene (PTFE)		Brass	Gold	165 °C	-65 °C
