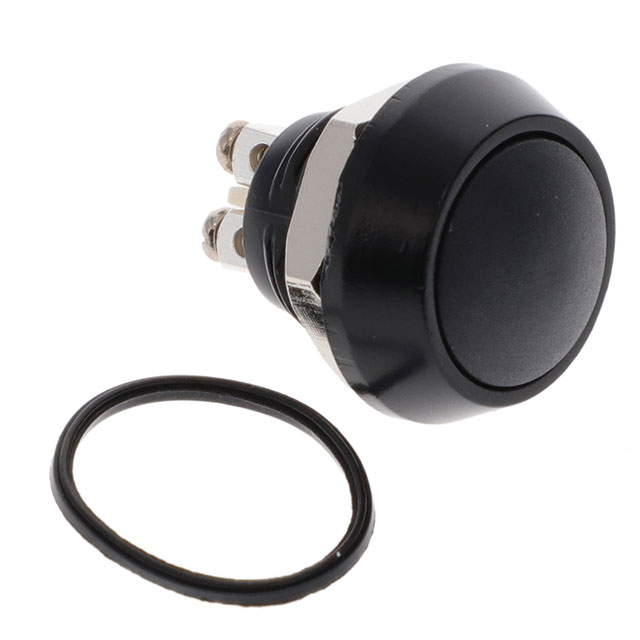

Specification	EH12NMB2ZX

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating	2 A
Electrical Life (Cycles)	200000
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	12 mm
Panel Cutout Shape	Circular
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Anti-Vandal
Voltage Rating - DC	48 V

EH12NMB2 Series

Part	Switch Function	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Mounting Type	Voltage Rating - DC	Circuit	Type	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Termination Style	Actuator Marking	Color - Actuator/Cap	Operating Temperature (Max)	Operating Temperature (Min)	Mechanical Life (Cycles)	Electrical Life (Cycles)
CIT Relay and Switch EH12NMB2ZX	Off-Mom	Dust Tight Waterproof	IP67	2 A	Front Panel Mount	48 V	SPST-NO	Anti-Vandal	12 mm	Circular	Button Round	Screw Terminal	No Marking	Black	70 °C	-20 °C	500000 Cycles	200000
