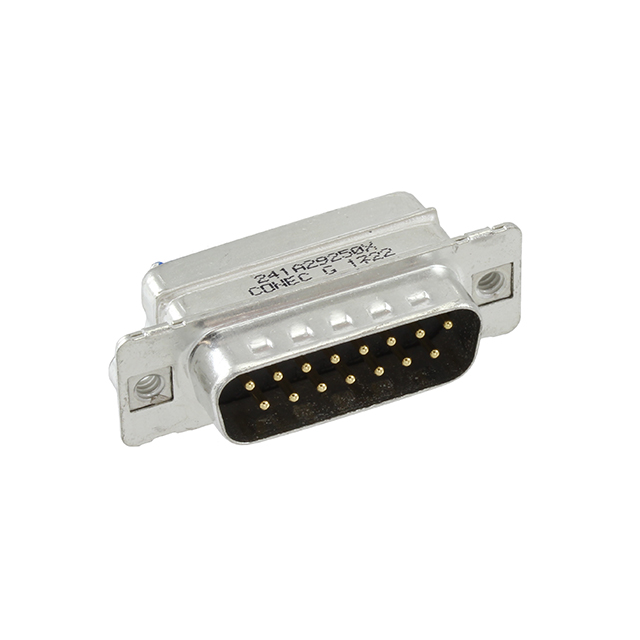

241A29250X

Obsolete

Amphenol CONEC

CONN D-SUB PLUG 15POS SLDR CUP

Search across all available documentation for this part.

Obsolete

Amphenol CONEC

CONN D-SUB PLUG 15POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	241A29250X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents, Filter
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Size, Connector Layout	2
Voltage Rating	100 V
Wire Gauge	20 AWG

Part	Wire Gauge	Dielectric Material	Current Rating (Amps)	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Connector Type	Flange Feature	Features	Material Flammability Rating	Contact Finish Thickness	Contact Material	Contact Finish	Connector Style	Shell Size, Connector Layout	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 241A29250X	20 AWG	Thermoplastic	7.5 A	Signal	Free Hanging (In-Line)	-25 °C	105 ░C	15	100 V	Male Pins Plug	Cable Side	Filter Grounding Indents	UL94 V-0	Flash	Copper Alloy	Gold	D-Sub	2	Black	2
Amphenol CONEC 241A29200X	20 AWG	Thermoplastic	7.5 A	Signal	Free Hanging (In-Line)	-25 °C	105 ░C	9	100 V	Male Pins Plug	Housing/Shell (Unthreaded)	Filter Grounding Indents	UL94 V-0		Copper Alloy	Gold	D-Sub		Black	2	8 çin	0.203 çm	DE E	1
Amphenol CONEC 241A29220X	20 AWG	Thermoplastic	7.5 A	Signal	Free Hanging (In-Line)	-25 °C	105 ░C		100 V	Male Pins Plug	Housing/Shell (Unthreaded)	Filter Grounding Indents	UL94 V-0		Copper Alloy	Gold	D-Sub		Black	2	8 çin	0.203 çm	B DB	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
