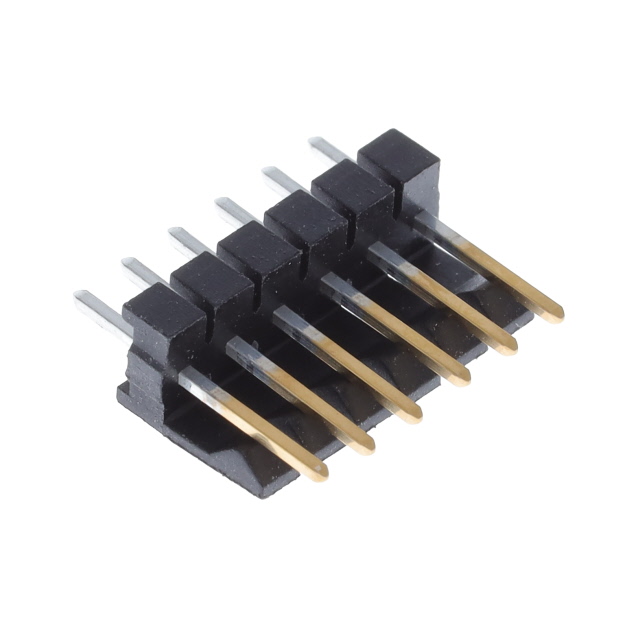

LCW-106-08-S-S-300

Active

Samtec Inc.

CONN HEADER VERT 6POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LCW-106-08-S-S-300

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.3 in
Contact Length - Mating	7.62 mm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.31 in
Insulation Height	7.87 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	13.46 mm
Overall Contact Length	0.53 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Color	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Type	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Mounting Type	Number of Rows	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Style	Connector Type	Termination	Shrouding	Contact Length - Mating [x]
Samtec Inc. LCW-106-08-S-S-300	Black	Square	30 Áin	0.76 Ám	-55 °C	125 °C	0.3 in	7.62 mm	3 A	Phosphor Bronze	Gold	UL94 V-0	All	Male Pin	6	0.13 in	3.3 mm	Polybutylene Terephthalate (PBT)	0.31 in	7.87 mm	13.46 mm	0.53 in	Through Hole	1	Tin	0.1 in	2.54 mm	Friction Lock	Board to Board Cable	Header	Solder	Shrouded - 1 Wall
Samtec Inc. LCW-106-07-G-S-230-LL	Black	Square	10 çin	0.25 çm	-55 °C	125 °C		5.84 mm	3 A	Phosphor Bronze	Gold	UL94 V-0	All	Male Pin	6	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	0.31 in	7.87 mm	10.92 mm	0.43 in	Through Hole	1	Tin	0.1 in	2.54 mm	Friction Lock	Board to Board Cable	Header	Kinked Pin Solder	Shrouded - 1 Wall	0.23 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.100" (2.54mm)
