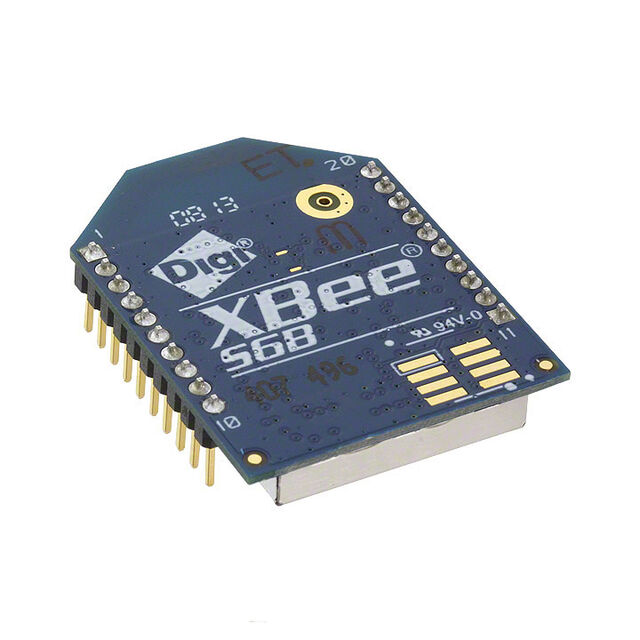

XB2B-WFPT-001

Digi

RF TXRX MOD WIFI THTHROUGH HOLE

Search across all available documentation for this part.

Digi

RF TXRX MOD WIFI THTHROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	XB2B-WFPT-001

Antenna Type	Integrated, Trace
Current - Receiving	100 mA
Current - Transmitting	309 mA
Data Rate	72 Mbps
Frequency	2.4 GHz
Modulation	QPSK, 64QAM, DSSS, CCK, BPSK, 16QAM, OFDM
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Protocol	802.11b/g/n
RF Family/Standard	WiFi
Sensitivity	-93 dBm
Serial Interfaces	UART, SPI
Voltage - Supply [Max]	3.46 V
Voltage - Supply [Min]	3.14 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	Mounting Type	Package / Case	Data Rate	Protocol	RF Family/Standard	Modulation	Current - Receiving	Current - Transmitting	Frequency	Antenna Type	Sensitivity
Digi XB2B-WFPT-001	3.14 V	3.46 V	-30 ░C	85 °C	SPI UART	Through Hole	Module	72 Mbps	802.11b/g/n	WiFi	16QAM 64QAM BPSK CCK DSSS OFDM QPSK	100 mA	309 mA	2.4 GHz	Integrated Trace	-93 dBm
Digi XB2B-WFUT-001	3.14 V	3.46 V	-30 ░C	85 °C	SPI UART	Through Hole	Module	72 Mbps	802.11b/g/n	WiFi	16QAM 64QAM BPSK CCK DSSS OFDM QPSK	100 mA	309 mA	2.4 GHz	Antenna Not Included U.FL	-93 dBm
Digi XB2B-WFWT-001	3.14 V	3.46 V	-30 ░C	85 °C	SPI UART	Through Hole	Module	72 Mbps	802.11b/g/n	WiFi	16QAM 64QAM BPSK CCK DSSS OFDM QPSK	100 mA	309 mA	2.4 GHz	Integrated Wire Antenna	-93 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Through Hole
