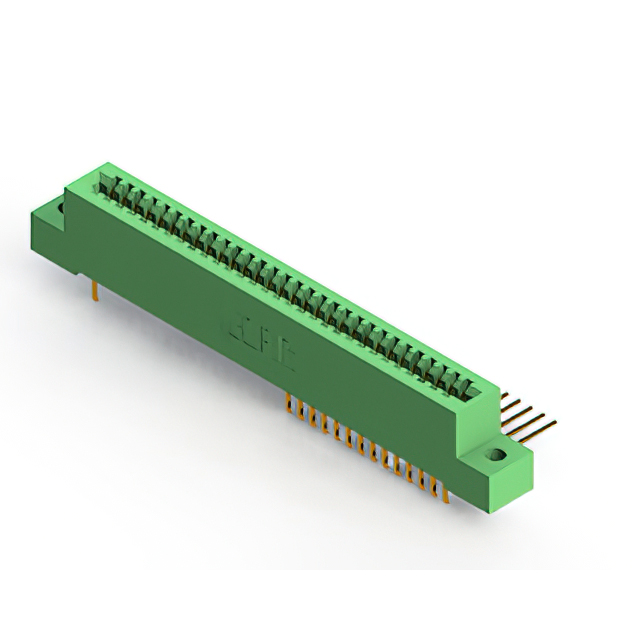

342-060-559-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-060-559-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-060-559-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
342-060 Series
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Positions | Color | Card Type | Pitch [x] | Pitch [x] | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Material - Insulation | Gender | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Type | Contact Finish | Termination Rows | Read Out | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Eyelet(s) | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Card Extender | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Cantilever | Gold | 2 | Dual | 30 |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Cantilever | Gold | 2 | Dual | 30 | |||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Wire Wrap | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Cantilever | Gold | 2 | Dual | 30 | |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Cantilever | Gold | 2 | Dual | 30 | |||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Cantilever | Gold | 2 | Dual | 30 | |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Card Extender | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Cantilever | Gold | 2 | Dual | 30 |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Card Extender | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Cantilever | Gold | 2 | Dual | 30 | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Eyelet(s) | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Card Extender | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Cantilever | Gold | 2 | Dual | 30 |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Wire Wrap | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Cantilever | Gold | 2 | Dual | 30 | |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | 60 | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Cantilever | Gold | 2 | Dual | 30 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.51 | |
Description
General part information
342-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
