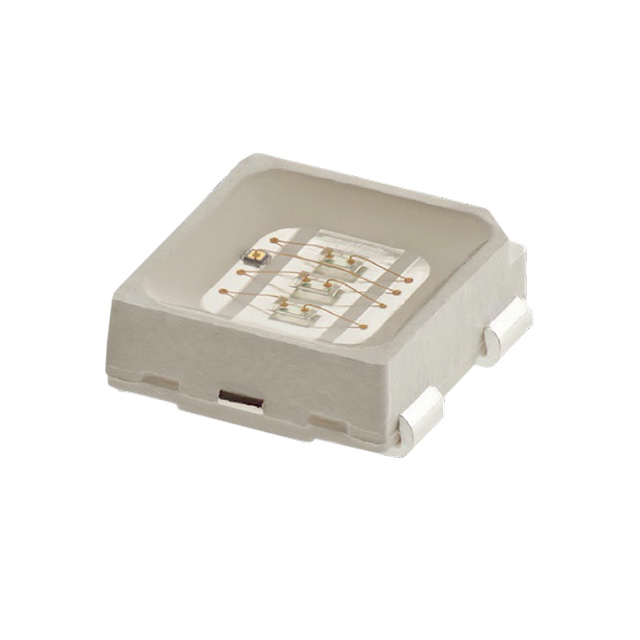

MLESBL-A1-0000-000T02

Active

Cree LED

LED XLAMP MLE BLUE 473NM SMD

Search across all available documentation for this part.

Active

Cree LED

LED XLAMP MLE BLUE 473NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	MLESBL-A1-0000-000T02

Color	Blue
Current - Max [Max]	120 mA
Current - Test	50 mA
Height - Seated (Max)	1.33 mm
Height - Seated (Max) [Max] [z]	0.052 in
Lumens/Watt @ Current - Test	25 lm/W
Luminous Flux @ Current/Temperature	12 lm
Luminous Flux @ Current/Temperature [Max]	14 lm
Luminous Flux @ Current/Temperature [Min]	11 lm
Mounting Type	Surface Mount
Package / Case	4-SMD, J-Lead Exposed Pad
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 "
Size / Dimension [y]	0.124 "
Size / Dimension [y]	3.15 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	11 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	9.6 V
Wavelength [Max]	480 nm
Wavelength [Min]	465 nm

Part	Lumens/Watt @ Current - Test	Current - Test	Color	Thermal Resistance of Package [custom]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Wavelength [Max]	Wavelength [Min]	Wavelength	Current - Max [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Supplier Device Package	Viewing Angle
Cree LED MLESBL-A1-0000-000U01	33 lm/W	50 mA	Blue	11 °C/W	9.6 V	16 lm	14 lm	18 lm	1.33 mm	0.052 in	485 nm	465 nm	475 nm	120 mA	4-SMD J-Lead Exposed Pad	3.5 mm	0.124 "	3.15 mm	0.138 "	Surface Mount	SMD	125 °
Cree LED MLESBL-A1-0000-000T02	25 lm/W	50 mA	Blue	11 °C/W	9.6 V	12 lm	11 lm	14 lm	1.33 mm	0.052 in	480 nm	465 nm		120 mA	4-SMD J-Lead Exposed Pad	3.5 mm	0.124 "	3.15 mm	0.138 "	Surface Mount	SMD	125 °
Cree LED MLESBL-A1-0000-000U05	33 lm/W	50 mA	Blue	11 °C/W	9.6 V	16 lm	14 lm	18 lm	1.33 mm	0.052 in	480 nm	470 nm	475 nm	120 mA	4-SMD J-Lead Exposed Pad	3.5 mm	0.124 "	3.15 mm	0.138 "	Surface Mount	SMD	125 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1400	$ 0.59

General part information

LED Lighting Color XLamp® ML-E Blue 473nm (465nm ~ 480nm) 4-SMD, J-Lead Exposed Pad
