PX0411/12S/6065 - PX0411/12S/6065

PX0411/12S/6065

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 400 SERIES, RECEPTACLE, 12, SOCKET, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

PX0411/12S/6065 - PX0411/12S/6065

PX0411/12S/6065

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 400 SERIES, RECEPTACLE, 12, SOCKET, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0411/12S/6065
Connector TypeReceptacle Housing
Contact ShapeCircular
Contact TypeCrimp and Solder Cup
FeaturesUV Resistant, Backshell
Housing ColorBlack, Blue

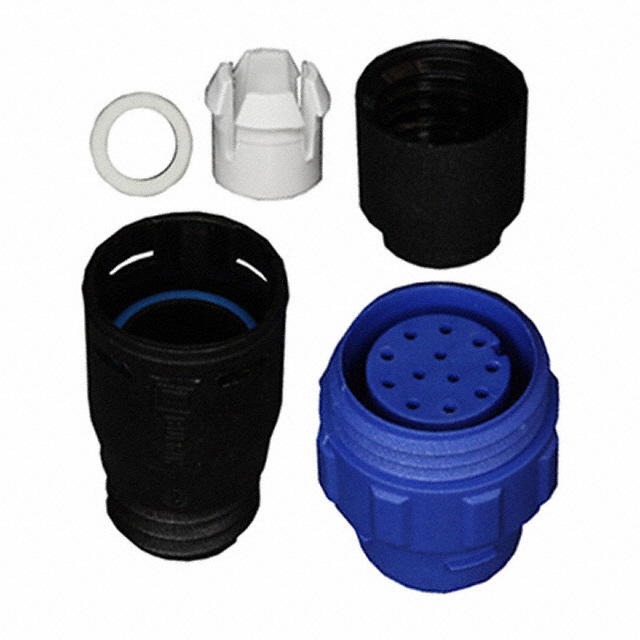

Includes1 Connector, 1 Cage Clamp, 1 O-Ring, 1 Backshell, 1 Gland, 1 Clamp Nut
Ingress ProtectionIP68 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions12
Operating Temperature [Max]80 C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
ShieldingUnshielded
TypeFor Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 13.73
10$ 12.17
25$ 11.70
50$ 11.24
100$ 10.61
250$ 9.67
500$ 9.05
1000$ 8.30
NewarkEach 1$ 23.13
10$ 19.98
100$ 18.84
250$ 17.23
500$ 16.49
1000$ 15.42
2500$ 14.55
5000$ 13.74

Description

General part information

PX0411 Series

12 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, UV Resistant
