Z8S18033VEC00TR

Obsolete

Zilog

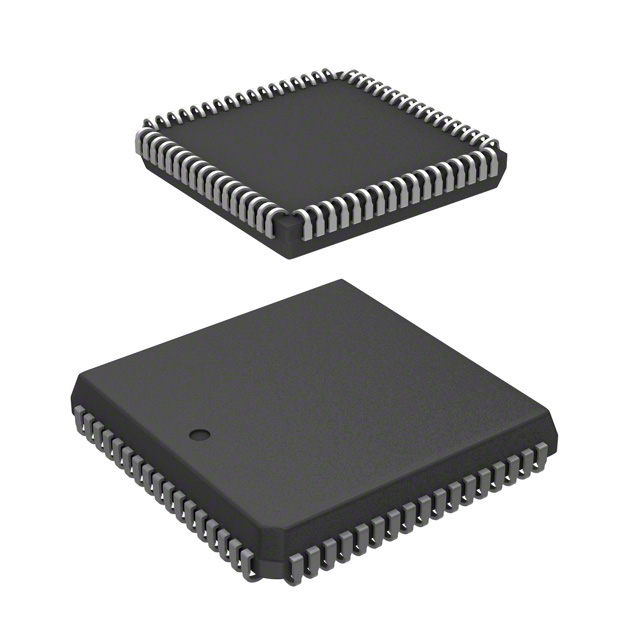

IC MPU Z180 33MHZ 68PLCC

Search across all available documentation for this part.

Obsolete

Zilog

IC MPU Z180 33MHZ 68PLCC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Z8S18033VEC00TR	Z8S18033 Series

Core Processor	Z8S180	Z8S180
Graphics Acceleration	False	False
Mounting Type	Surface Mount	Surface Mount
Number of Cores/Bus Width [custom]	8 Bit	8 Bit
Number of Cores/Bus Width [custom]	1 Core	1 Core
Operating Temperature [Max]	100 °C	70 - 100 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	68-LCC (J-Lead)	80-BQFP, 68-LCC (J-Lead)
RAM Controllers	DRAM	DRAM
Speed	33 MHz	33 MHz
Supplier Device Package	68-PLCC	80-QFP, 68-PLCC
Voltage - I/O	5 V	5 V

IC MPU Z180 33MHZ 80QFP

Part	Mounting Type	RAM Controllers	Speed	Voltage - I/O	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Core Processor	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]
Zilog Z8S18033FEG	Surface Mount	DRAM	33 MHz	5 V	-40 °C	100 °C	80-BQFP	80-QFP	Z8S180	8 Bit	1 Core
Zilog Z8S18033VEG	Surface Mount	DRAM	33 MHz	5 V	-40 °C	100 °C	68-LCC (J-Lead)	68-PLCC	Z8S180	8 Bit	1 Core
Zilog Z8S18033FSC00TR	Surface Mount	DRAM	33 MHz	5 V	0 °C	70 °C	80-BQFP	80-QFP	Z8S180	8 Bit	1 Core
Zilog Z8S18033VSG	Surface Mount	DRAM	33 MHz	5 V	0 °C	70 °C	68-LCC (J-Lead)	68-PLCC	Z8S180	8 Bit	1 Core
Zilog Z8S18033FSG	Surface Mount	DRAM	33 MHz	5 V	0 °C	70 °C	80-BQFP	80-QFP	Z8S180	8 Bit	1 Core
Zilog Z8S18033VEC00TR	Surface Mount	DRAM	33 MHz	5 V	-40 °C	100 °C	68-LCC (J-Lead)	68-PLCC	Z8S180	8 Bit	1 Core
Zilog Z8S18033VSC00TR	Surface Mount	DRAM	33 MHz	5 V	0 °C	70 °C	68-LCC (J-Lead)	68-PLCC	Z8S180	8 Bit	1 Core
