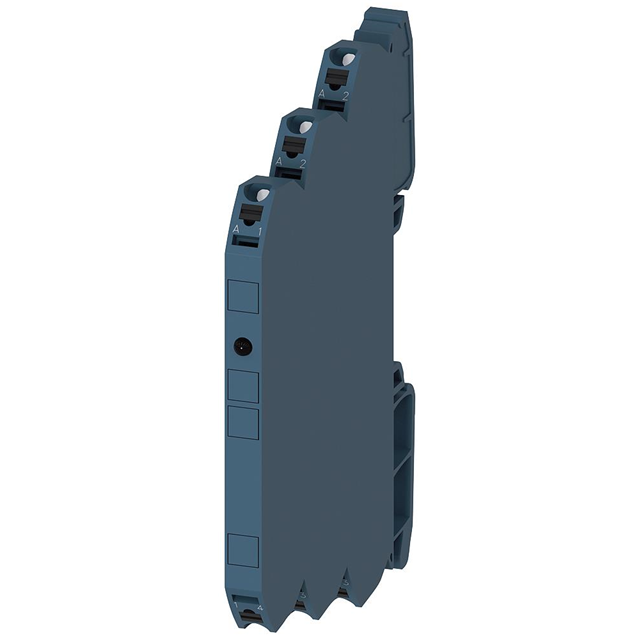

Specification	3RQ30522SM40

Approval Agency	CSA, CE, DNV, RCM, UL, EAC, CCC
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO
Contact Rating (Current)	2 A
Features	Lighted Indicator
Form A Count	1
Load - Max Switching (Real Power)	120 W
Mounting Type	DIN Rail
Operate Time	0.3 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Relay Type	General Purpose
Release Time	2 ms
Switching Voltage DC (Max)	60 VDC
Termination Style	Spring Terminal

3RQ3052 Series

Part	Load - Max Switching (Apparent Power)	Approval Agency	Coil Type	Form A Count	Contact Form	Mounting Type	Operate Time	Relay Type	Release Time	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Features	Coil Voltage	Switching Voltage AC (Max)	Contact Rating (Current)	Load - Max Switching (Real Power)	Switching Voltage DC (Max)
Siemens 3RQ30521SM50	528 VA	CCC CE CSA DNV EAC RCM UL	Non Latching	1	SPST-NO	DIN Rail	10 ms	General Purpose	9 ms	-25 °C	60 °C	Screw Terminal	Lighted Indicator	24 VDC	264 VAC	2 A
Siemens 3RQ30522SM50	528 VA	CCC CE CSA DNV EAC RCM UL	Non Latching	1	SPST-NO	DIN Rail	10 ms	General Purpose	9 ms	-25 °C	60 °C	Spring Terminal	Lighted Indicator	24 VDC	264 VAC	2 A
Siemens 3RQ30522SM40		CCC CE CSA DNV EAC RCM UL	Non Latching	1	SPST-NO	DIN Rail	0.3 ms	General Purpose	2 ms	-25 °C	60 °C	Spring Terminal	Lighted Indicator	24 VDC		2 A	120 W	60 VDC
Siemens 3RQ30522SM30		CE CSA DNV EAC RCM UL	Non Latching	1	SPST-NO	DIN Rail	0.2 ms	General Purpose	0.3 ms	-25 °C	60 °C	Spring Terminal	Lighted Indicator	24 VDC		2 A	60 W	30 VDC
Siemens 3RQ30521SM30		CE CSA DNV EAC RCM UL	Non Latching	1	SPST-NO	DIN Rail	0.2 ms	General Purpose	0.3 ms	-25 °C	60 °C	Screw Terminal	Lighted Indicator	24 VDC		2 A	60 W	30 VDC
Siemens 3RQ30521SM40		CCC CE CSA DNV EAC RCM UL	Non Latching	1	SPST-NO	DIN Rail	0.3 ms	General Purpose	2 ms	-25 °C	60 °C	Screw Terminal	Lighted Indicator	24 VDC		2 A	120 W	60 VDC
