858-004-203RLS4

Active

MH Connectors

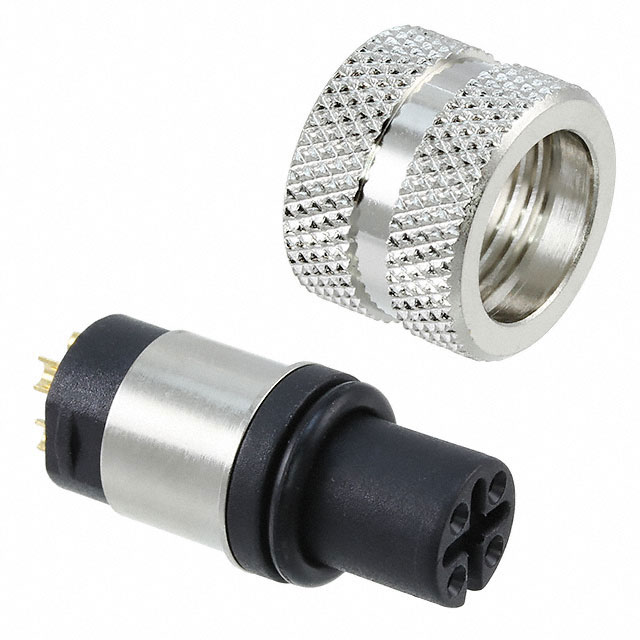

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 4 POSITIONS, CRIMP SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +3

858-004-203RLS4

Active

MH Connectors

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 4 POSITIONS, CRIMP SOCKET

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	858-004-203RLS4

Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Shielded
Voltage Rating	250 VDC

858-004 Series

Part	Shielding	Shell Finish	Material Flammability Rating	Number of Positions	Ingress Protection	Connector Type	Shell Material	Contact Finish - Mating	Features	Insert Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Orientation	Color	Shell Size - Insert	Voltage Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [custom]	Cable Opening [custom]
MH Connectors 858-004-203RLS1	Shielded	Nickel	UL94 V-0	4	IP67 - Dust Tight Waterproof	Female Sockets Plug	Brass	Gold	Coupling Nut	Polybutylene Terephthalate (PBT)	Metal	85 °C	-40 °C	4 A	A	Black Silver	M12-4	250 VDC	Free Hanging (In-Line)	Flash	Brass
MH Connectors 858-004-203RLS4	Shielded	Nickel	UL94 V-0	4	IP67 - Dust Tight Waterproof	Female Sockets Plug	Brass	Gold	Coupling Nut	Polybutylene Terephthalate (PBT)	Metal	85 °C	-40 °C	4 A	A	Black Silver	M12-4	250 VDC	Free Hanging (In-Line)		Brass	10 çin	0.25 çm
MH Connectors 858-004-103RSS1	Shielded	Nickel	UL94 V-0	4	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Brass	Gold		Polybutylene Terephthalate (PBT)	Metal	85 °C	-40 °C	4 A	A	Silver	M12-4	250 VDC	Free Hanging (In-Line)	Flash	Brass			10 mm	0.394 in
MH Connectors 858-004-103RSS4	Shielded	Nickel	UL94 V-0	4	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Brass	Gold		Polybutylene Terephthalate (PBT)	Metal	85 °C	-40 °C	4 A	A	Silver	M12-4	250 VDC	Free Hanging (In-Line)		Brass	10 çin	0.25 çm	10 mm	0.394 in
MH Connectors 858-004-103RLU4	Unshielded	Nickel	UL94 V-0	4	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Brass	Gold		Polybutylene Terephthalate (PBT)	Metal	85 °C	-40 °C	4 A	A	Black Silver	M12-4	250 VDC	Free Hanging (In-Line)		Brass	10 çin	0.25 çm
MH Connectors 858-004-203RSU1	Unshielded	Nickel	UL94 V-0	4	IP67 - Dust Tight Waterproof	Female Sockets Plug	Brass	Gold	Coupling Nut	Polybutylene Terephthalate (PBT)	Metal	85 °C	-40 °C	4 A	A	Black Silver	M12-4	250 VDC	Free Hanging (In-Line)	Flash	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.45
		10	$ 10.31
		25	$ 9.71
		40	$ 9.46
		100	$ 9.21
		300	$ 8.22
		500	$ 7.72
		1000	$ 6.82
Newark	Each	1	$ 10.46
		10	$ 8.36
		25	$ 7.83
		50	$ 7.40
		100	$ 6.94
		250	$ 6.57
		500	$ 6.24

Description

General part information

858-004 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
