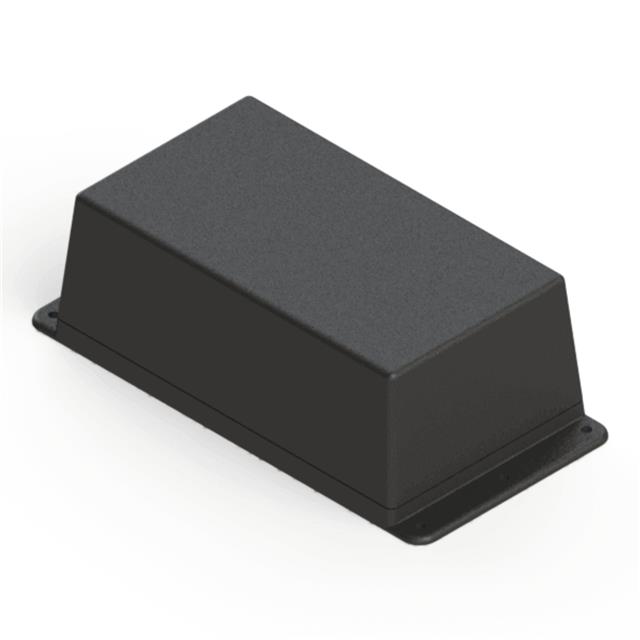

Specification	WM053,BK

Area (L x W)	18.3 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Mounting Flange, Wall Mount
Height	2.1 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	5.62 in
Size / Dimension Width	3.25 in
Thickness	0.1 in
Weight	0.27 lb

WM053 Series

Part	Weight	Color	Size / Dimension Width	Size / Dimension Length	Area (L x W)	Features	Material	Design	Thickness	Ratings	Container Type	Height	Material Flammability Rating
Serpac WM033R,GY	0.231 lb	Gray	3.25 in	4.38 in	14.2 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	2.1 in	UL94 HB
Serpac WM052RC,GY	0.244 lb	Clear Cover/Door Gray	3.25 in	5.62 in	18.3 in²	Front Access Mounting Flange PCB Supports Wall Mount	Plastic Polycarbonate Polycarbonate (PC)	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in
Serpac WM071R,BK	0.347 lb	Black	4.88 in	6.88 in	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.1 in	UL94 HB
Serpac WM012R,GY	0.15 lbs	Gray	2.27 in	3.62 in	8.22 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in	UL94 HB
Serpac WM023RI,AL	0.187 lb	Almond	2.6 in	4.1 in	10.7 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	2.1 in	UL94 HB
Serpac WM092I,BK	0.574 lb	Black	6.34 in	9.5 in	60.2 in²	Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in	UL94 HB
Serpac WM051I,BK	0.221 lb	Black	3.25 in	5.62 in	18.3 in²	Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.1 in	UL94 HB
Serpac WM022R,GY	0.155 lb	Gray	2.6 in	4.1 in	10.7 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in	UL94 HB
Serpac WM072C,AL	0.41 lb	Almond Clear Cover/Door	4.88 in	6.88 in	33.6 in²	Mounting Flange PCB Supports Wall Mount	Plastic Polycarbonate Polycarbonate (PC)	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in
Serpac WM021,AL	0.145 lb	Almond	2.6 in	4.1 in	10.7 in²	Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.1 in	UL94 HB
