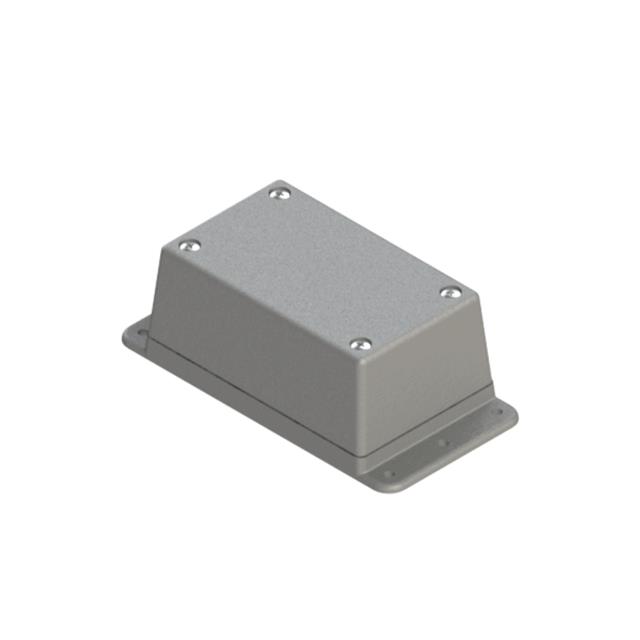

Specification	WM012R,GY

Area (L x W)	8.22 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height	1.6 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	3.62 in
Size / Dimension Width	2.27 in
Thickness	0.1 in
Weight	0.15 lbs

WM Series

Part	Weight	Color	Size / Dimension Width	Size / Dimension Length	Area (L x W)	Features	Material	Design	Thickness	Ratings	Container Type	Height	Material Flammability Rating
Serpac WM033R,GY	0.231 lb	Gray	3.25 in	4.38 in	14.2 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	2.1 in	UL94 HB
Serpac WM052RC,GY	0.244 lb	Clear Cover/Door Gray	3.25 in	5.62 in	18.3 in²	Front Access Mounting Flange PCB Supports Wall Mount	Plastic Polycarbonate Polycarbonate (PC)	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in
Serpac WM071R,BK	0.347 lb	Black	4.88 in	6.88 in	33.6 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.1 in	UL94 HB
Serpac WM012R,GY	0.15 lbs	Gray	2.27 in	3.62 in	8.22 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in	UL94 HB
Serpac WM023RI,AL	0.187 lb	Almond	2.6 in	4.1 in	10.7 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	2.1 in	UL94 HB
Serpac WM092I,BK	0.574 lb	Black	6.34 in	9.5 in	60.2 in²	Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in	UL94 HB
Serpac WM051I,BK	0.221 lb	Black	3.25 in	5.62 in	18.3 in²	Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.1 in	UL94 HB
Serpac WM022R,GY	0.155 lb	Gray	2.6 in	4.1 in	10.7 in²	Front Access Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in	UL94 HB
Serpac WM072C,AL	0.41 lb	Almond Clear Cover/Door	4.88 in	6.88 in	33.6 in²	Mounting Flange PCB Supports Wall Mount	Plastic Polycarbonate Polycarbonate (PC)	Cover Included	0.1 in	IP40 NEMA 1	Box	1.6 in
Serpac WM021,AL	0.145 lb	Almond	2.6 in	4.1 in	10.7 in²	Mounting Flange PCB Supports Wall Mount	ABS Plastic	Cover Included	0.1 in	IP40 NEMA 1	Box	1.1 in	UL94 HB
