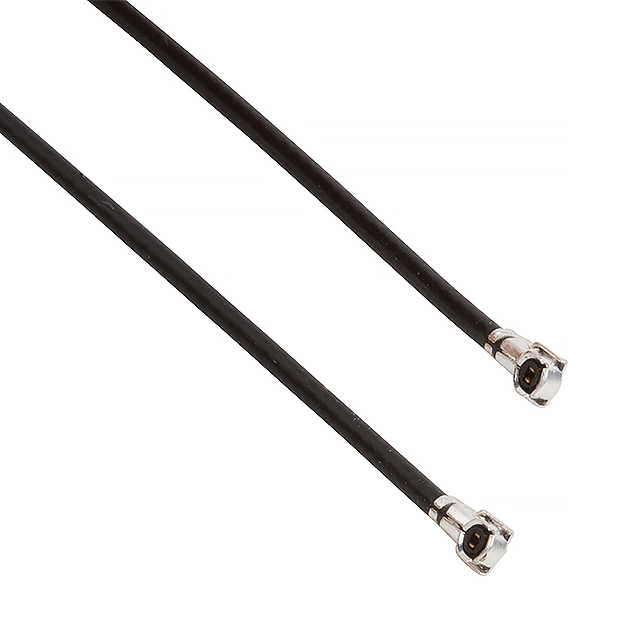

Specification	A-2PA-113-050B2

1st Connector	AMMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	AMMC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Outer Diameter	1.13 mm
Cable Type	Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable
Cable Type Size	1.13
Color	Black
Features	Shielded
Frequency - Max	6000 MHz
Length	1.969 in
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Overall Impedance	50 Ohms
Style	AMMC

A-2PA-113 Series

Part	Length	Features	Color	Style	1st Connector Mounting Type	2nd Connector Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Max	Cable Type Size	Cable Type	Cable Outer Diameter	2nd Contact Gender	2nd Connector	1st Connector	Overall Impedance	1st Contact Gender
McGill Microwave Systems A-2PA-113-050B2	1.969 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-300B2	11.811 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-01KB2	39.4 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-100B2	3.937 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-500B2	19.69 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-200B2	7.874 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-250B2	9.843 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
McGill Microwave Systems A-2PA-113-150B2	5.906 in	Shielded	Black	AMMC	Free Hanging (In-Line)	Free Hanging (In-Line)	90 °C	-40 °C	6000 MHz	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	AMMC Plug Right Angle	AMMC Plug Right Angle	50 Ohms	Female
