SDE0604A-1R5M

Active

Bourns Inc.

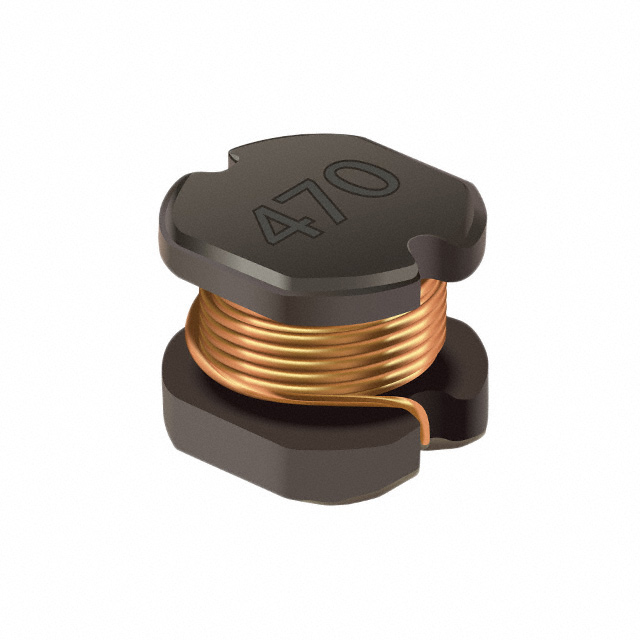

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE0604A SERIES, 1.5 H, 20%, UNSHIELDED, 0.024 OHM, 5 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

SDE0604A-1R5M

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE0604A SERIES, 1.5 H, 20%, UNSHIELDED, 0.024 OHM, 5 A

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDE0604A-1R5M

Current - Saturation (Isat)	5.3 A
Current Rating (Amps)	5 A
DC Resistance (DCR) [Max]	24 mOhm
Frequency - Self Resonant	123 MHz
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Inductance	1.5 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	5.8 mm
Size / Dimension [x]	0.228 in
Size / Dimension [y]	5.2 mm
Size / Dimension [y]	0.205 "
Tolerance	20 %
Type	Wirewound, Drum Core

SDE0604A Series

Part	Tolerance	Mounting Type	Current Rating (Amps)	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Shielding	Frequency - Self Resonant	Ratings	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	DC Resistance (DCR)
Bourns Inc. SDE0604A-5R6M	20 %	Surface Mount	3.2 A	1 MHz	0.189 "	4.8 mm	75 mOhm	2.75 A	Unshielded	41 MHz	AEC-Q200	5.6 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-3R9M	20 %	Surface Mount	3.6 A	1 MHz	0.189 "	4.8 mm	65 mOhm	3.2 A	Unshielded	44 MHz	AEC-Q200	3.9 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-2R7M	20 %	Surface Mount	4 A	1 MHz	0.189 "	4.8 mm	55 mOhm	3.8 A	Unshielded	60 MHz	AEC-Q200	2.7 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-3R3M	20 %	Surface Mount	3.8 A	1 MHz	0.189 "	4.8 mm		3.5 A	Unshielded	50 MHz	AEC-Q200	3.3 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-151K	10 %	Surface Mount	0.52 A		0.189 "	4.8 mm	1.1 Ohm	520 mA	Unshielded	7 MHz	AEC-Q200	150 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-1R2M	20 %	Surface Mount	5.3 A	1 MHz	0.189 "	4.8 mm		6 A	Unshielded	155 MHz	AEC-Q200	1.2 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard	20 mOhm
Bourns Inc. SDE0604A-390M	20 %	Surface Mount	1.4 A	1 MHz	0.189 "	4.8 mm		1 A	Unshielded	17 MHz	AEC-Q200	39 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-150M	20 %	Surface Mount		1 MHz	0.189 "	4.8 mm		1.65 A	Unshielded	26 MHz	AEC-Q200	15 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard	140 mOhm
Bourns Inc. SDE0604A-1R5M	20 %	Surface Mount	5 A	1 MHz	0.189 "	4.8 mm	24 mOhm	5.3 A	Unshielded	123 MHz	AEC-Q200	1.5 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard
Bourns Inc. SDE0604A-560K	10 %	Surface Mount	1.1 A	1 MHz	0.189 "	4.8 mm		820 mA	Unshielded	12 MHz	AEC-Q200	56 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	Ferrite	125 °C	-40 °C	Drum Core Wirewound	Nonstandard	420 mOhm
