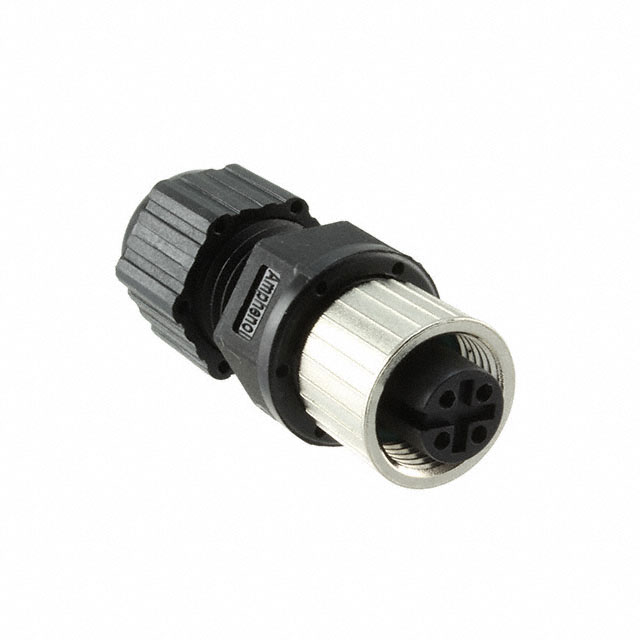

Specification	12-04BFFA-SL8001

Backshell Material, Plating	Nylon, Polyamide (PA)
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	4 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Glass Filled, PA, Polyamide, Nylon
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Solder Cup

12-04BFFA Series

Part	Contact Finish - Mating	Number of Positions	Mounting Type	Termination	Backshell Material, Plating	Shell Finish	Insert Material	Shell Material	Orientation	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection IP Rating	Ingress Protection Description	Shielding	Shell Size - Insert	Current Rating	Features	Contact Material	Color	Fastening Type	Connector Type
McGill Microwave Systems 12-04BFFA-SL8001	Gold	4	Free Hanging (In-Line)	Solder Cup	Nylon Polyamide (PA)	Nickel	Glass Filled Nylon PA Polyamide	Zinc Alloy	A	Metal	-40 °C	105 °C	IP68	Dust Tight Waterproof	Unshielded	M12-4	4 A	Backshell Coupling Nut	Copper Alloy	Black Silver	Threaded	Female Sockets Receptacle
