3EHQ1

Active

TE Connectivity Raychem Cable Protection

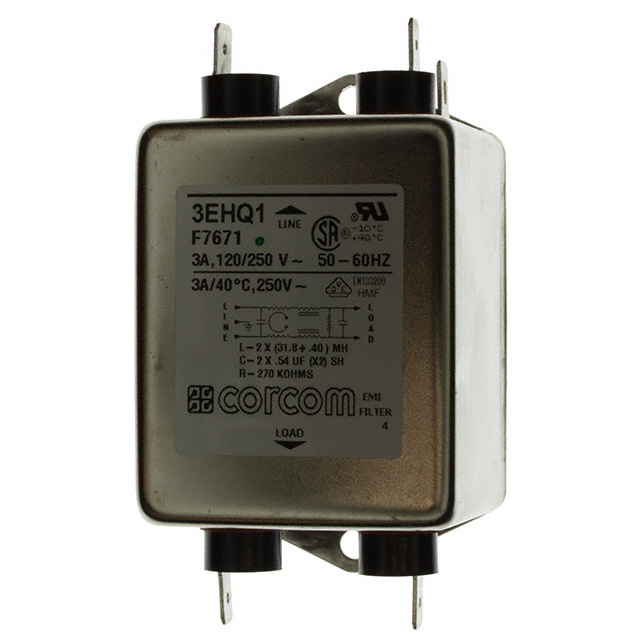

LINE FILTER 250VAC 3A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

3EHQ1

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 3A CHASSIS

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3EHQ1

Applications	General Purpose
Approval Agency	VDE, CSA, UR
Configuration	Two Stage
Current	3 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V

Corcom H Series

Part	Mounting Type	Current Rating - Appliance Inlet	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Filter	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Filter Type	Connector Type	Approval Agency	Termination	Termination	Termination	Configuration	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Voltage - Rated AC	Termination Style	Features	Panel Cutout Dimensions	Inductance
TE Connectivity Raychem Cable Protection 3EC2	Flange Panel Mount Right Angle	3 A	IEC 320-C14	22.86 mm	30.48 mm	3 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	Male Blades Receptacle	CSA UL VDE	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection 3EQ3	Chassis Mount								Single Phase		CSA UR VDE				Two Stage	General Purpose	-10 °C	40 °C	60 Hz	50 Hz	3 A	250 V	Wire Leads
TE Connectivity Raychem Cable Protection 3EQ8	Chassis Mount								Single Phase		CSA UR VDE				Single Stage	General Purpose	-10 °C	40 °C	60 Hz	50 Hz	3 A	250 V	IEC 320-C14 Wire Leads
TE Connectivity Raychem Cable Protection 3ED1	Flange Panel Mount	3 A	IEC 320-C14			3 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	Male Blades Receptacle	CSA UL VDE	0.25 in	6.3 mm	Quick Connect										Front or Rear Side Mount	Variable Size
TE Connectivity Raychem Cable Protection 3EP7M	Bulkhead	3 A	IEC 320-C14	23.11 mm	32.89 mm	3 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	Male Blades Receptacle	CSA SEV UL VDE	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection 3EHQ1	Chassis Mount								Single Phase		CSA UR VDE				Two Stage	General Purpose	-10 °C	40 °C	60 Hz	50 Hz	3 A	250 V	Quick Connect
TE Connectivity Raychem Cable Protection 3EEB1	Flange Panel Mount	3 A	IEC 320-C14			3 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	Male Blades Receptacle	CSA UL VDE	0.25 in	6.3 mm	Quick Connect										Front or Rear Side Mount	Variable Size
TE Connectivity Raychem Cable Protection 3ESK1	Chassis Mount								Single Phase		CSA UR VDE				Single Stage	General Purpose	-10 °C	40 °C	60 Hz	50 Hz	3 A	250 V	Quick Connect			7.06 mH
TE Connectivity Raychem Cable Protection 3EEB2	Flange Panel Mount Right Angle	3 A	IEC 320-C14	22.86 mm	30.48 mm	3 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	Male Blades Receptacle	CSA UL VDE	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection 3ER7M	Chassis Mount								Single Phase		CSA UR VDE				Two Stage	General Purpose	-10 °C	40 °C	60 Hz	50 Hz	3 A	250 V	IEC 320-C14 Quick Connect
