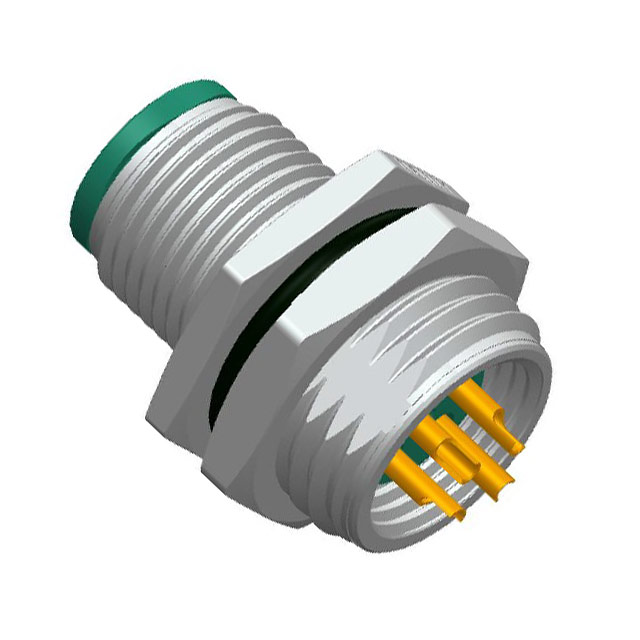

Specification	M12D-04PMMS-SH8001

Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	4 A
Fastening Type	Threaded
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Glass Filled, PA, Polyamide, Nylon
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	250 V
Voltage Rating (Type)	DC

M12D-04PMMS Series

Part	Fastening Type	Shell Finish	Ingress Protection IP Rating	Ingress Protection Description	Current Rating	Voltage Rating	Voltage Rating (Type)	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert	Mounting Type	Primary Material	Contact Material	Number of Positions	Shell Material	Color	Contact Finish - Mating	Mounting Feature	Shielding	Connector Type	Insert Material	Orientation
McGill Microwave Systems M12D-04PMMS-SH8001	Threaded	Nickel	IP68	Dust Tight Waterproof	4 A	250 V	DC	Solder Cup	-40 °C	105 °C	M12-4	Panel Mount	Metal	Copper Alloy	4	Zinc Alloy	Silver	Gold	Bulkhead Rear Side Nut	Shielded	Male Pins Plug	Glass Filled Nylon PA Polyamide	D
McGill Microwave Systems M12D-04PMMS-SF8002	Threaded	Nickel	IP68 IP69K	Dust Tight Water Resistant Waterproof	4 A	250 V		Solder Cup	-40 °C	105 °C	M12-4	Panel Mount	Metal	Copper Alloy	4	Zinc Alloy	Silver	Gold	Bulkhead Front Side Nut	Unshielded	Male Pins Receptacle	Glass Filled Nylon PA Polyamide	D
McGill Microwave Systems M12D-04PMMS-SF8001	Threaded	Nickel	IP68	Dust Tight Waterproof	4 A	250 V	DC	Solder Cup	-40 °C	105 °C	M12-4	Panel Mount	Metal	Copper Alloy	4	Zinc Alloy	Silver	Gold	Bulkhead Front Side Nut	Shielded	Male Pins Plug	Glass Filled Nylon PA Polyamide	D
McGill Microwave Systems M12D-04PMMS-SH8002	Threaded	Nickel	IP68 IP69K	Dust Tight Water Resistant Waterproof	4 A	250 V		Solder Cup	-40 °C	105 °C	M12-4	Panel Mount	Metal	Copper Alloy	4	Zinc Alloy	Silver	Gold	Bulkhead Rear Side Nut	Unshielded	Male Pins Receptacle	Glass Filled Nylon PA Polyamide	D
