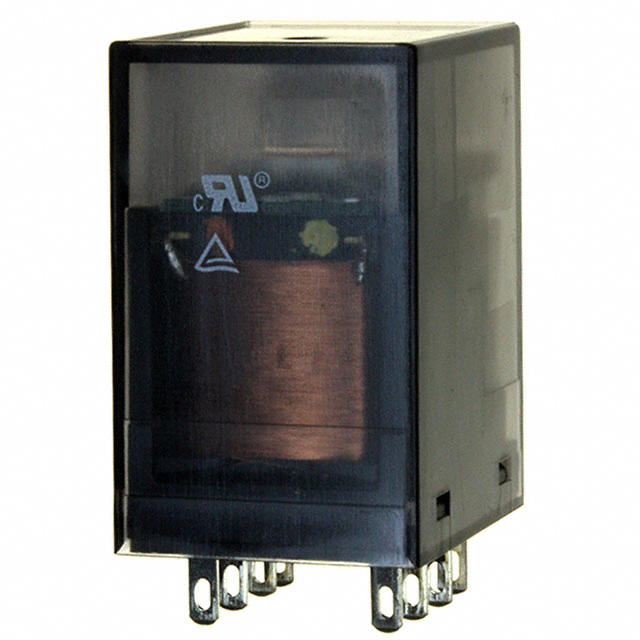

PT52AS15B

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 6A 115V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 6A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Termination Style	Must Operate Voltage	Load - Max Switching	Contact Form	Operate Time	Release Time	Mounting Type	Contact Material	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Features	Coil Type	Switching Voltage	Relay Type	Must Release Voltage	Coil Current	Coil Voltage
TE Connectivity Potter & Brumfield Relays PT52AS15B	CQC cURus TUV	Plug In	92 VAC	1500 VA	4PDT (4 Form C)	20 ms	20 ms	Socketable	Silver Nickel (AgNi)	4.85 kOhms	-45 °C	70 °C	6 A	Lighted Indicator	Non Latching	250 VAC	General Purpose	34.5 VAC	8.8 mA	115 VAC
TE Connectivity Potter & Brumfield Relays PT52AL12B	CQC cURus TUV	Plug In	9 VDC	1500 VA	4PDT (4 Form C)	20 ms	20 ms	Socketable	Silver Nickel (AgNi)	192 Ohms	-45 °C	70 °C	6 A	Lighted Indicator	Non Latching	250 VAC	General Purpose	1.2 VDC	62.5 mA	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 4PDT (4 Form C) 115VAC Coil Socketable
