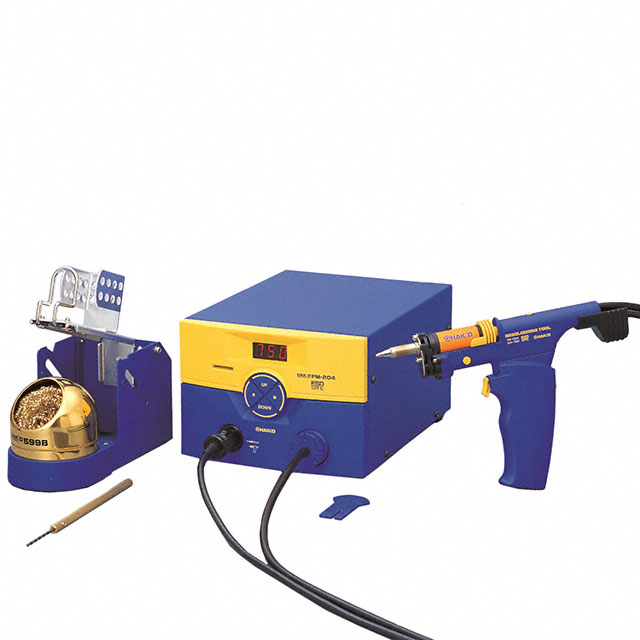

FM204-01

Active

American Hakko Products, Inc.

DESOLDER SLDR STA 120W 1 CH 120V

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

DESOLDER SLDR STA 120W 1 CH 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DESOLDER SLDR STA 120W 1 CH 120V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FM204-01	FM204 Series

Base Unit	FM-204	FM-204
Control/Display Type	Digital	Digital
Features	Sleep Mode, Quick Change Nozzle, Configurable Handpiece, Internal Vacuum Pump	Sleep Mode, Internal Air, Configurable Handpiece, Quick Change Nozzle, Internal Vacuum Pump
Includes	Iron Holder, Filter Pipe Assembly (10), Key Card, Nozzle Remover, Ceramic Filter (10), Heat Resistant Pad, Cleaning Drill	Iron Holder, Filter Pipe Assembly (10), Key Card, Nozzle Remover, Ceramic Filter (10), Heat Resistant Pad, Cleaning Drill
Number of Channels	1	1
Plug Type	NEMA 5-15P	NEMA 5-15P
Supplied Iron, Tweezer, Handle	B2872, FM-2024-02	FM-2027-03, FM-2024-02, B2872
Supplied Tips/Nozzles	Sold Separately	Sold Separately
Tip Cleaner	Scouring Pad	Scouring Pad
Type	Soldering, Desoldering	Soldering, Desoldering
Voltage - Input	120 V	120 V
Voltage - Output	24 V	24 V
Wattage	120 W	120 W
Workstand	FH200-05	FH200-05

DESOLDER SLDR STA 120W 1 CH 120V

Part	Base Unit	Control/Display Type	Workstand	Supplied Tips/Nozzles	Includes	Features	Number of Channels	Supplied Iron, Tweezer, Handle	Wattage	Voltage - Output	Tip Cleaner	Type	Plug Type	Voltage - Input
American Hakko Products, Inc. FM204-CP	FM-204	Digital	FH200-05	Sold Separately	Ceramic Filter (10), Cleaning Drill, Filter Pipe Assembly (10), Heat Resistant Pad, Iron Holder, Key Card, Nozzle Remover	Configurable Handpiece, Internal Air, Quick Change Nozzle, Sleep Mode	1	FM-2024-02, FM-2027-03	120 W	24 V	Scouring Pad	Desoldering, Soldering	NEMA 5-15P	120 V
American Hakko Products, Inc. FM204-01	FM-204	Digital	FH200-05	Sold Separately	Ceramic Filter (10), Cleaning Drill, Filter Pipe Assembly (10), Heat Resistant Pad, Iron Holder, Key Card, Nozzle Remover	Configurable Handpiece, Internal Vacuum Pump, Quick Change Nozzle, Sleep Mode	1	B2872, FM-2024-02	120 W	24 V	Scouring Pad	Desoldering, Soldering	NEMA 5-15P	120 V
