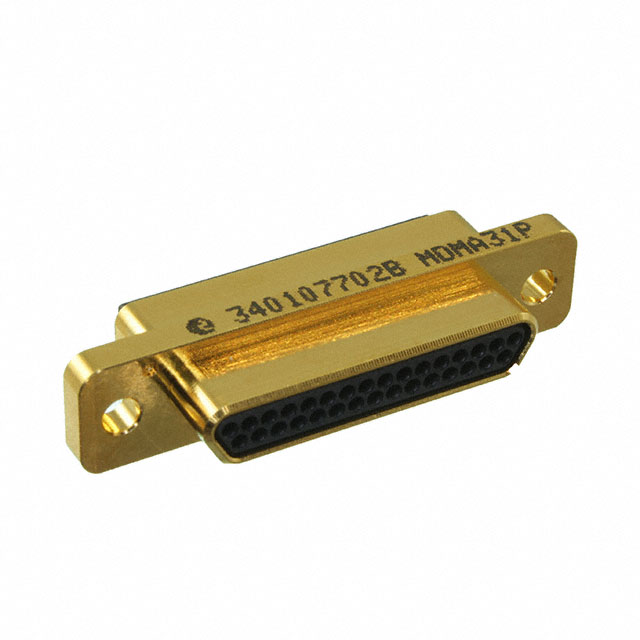

340107702B MDMA31P-FO

Active

C&K Aerospace

CONN MICRO-D HOUSING PLUG 31POS

Search across all available documentation for this part.

Active

C&K Aerospace

CONN MICRO-D HOUSING PLUG 31POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	340107702B MDMA31P-FO	340107702 Series

Color	Black	Black
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug for Male Contacts	Plug for Male Contacts, Receptacle for Female Contacts
Contact Type	Signal	Signal
Dielectric Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Features	Dust Cap	Dust Cap
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	31	21 - 37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Finish Thickness	28 µin	28 µin
Shell Finish Thickness	0.7 µm	0.7 µm
Shell Material, Finish	Gold Plated, Aluminum Alloy	Gold Plated, Aluminum Alloy
Shell Size, Connector Layout [custom]	0.043	0.043
Shell Size, Connector Layout [custom]	0.05	0.05

CONN MICRO-D HOUSING PLUG 31POS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Flange Feature	Connector Type	Color	Number of Positions	Number of Rows	Dielectric Material	Note	Contact Type	Shell Finish Thickness	Shell Finish Thickness	Shell Material, Finish	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
C&K Aerospace 340107702B MDMA31P-FO	-55 °C	125 °C	Free Hanging (In-Line)	Dust Cap	Housing/Shell (Unthreaded)	Plug for Male Contacts	Black	31	2	Liquid Crystal Polymer (LCP), Glass Filled	Contacts Not Included	Signal	28 µin	0.7 µm	Aluminum Alloy, Gold Plated	D-Type, Micro-D	0.043	0.05
C&K Aerospace 340107702B MDMA37P-FO	-55 °C	125 °C	Free Hanging (In-Line)	Dust Cap	Housing/Shell (Unthreaded)	Plug for Male Contacts	Black	37	2	Liquid Crystal Polymer (LCP), Glass Filled	Contacts Not Included	Signal	28 µin	0.7 µm	Aluminum Alloy, Gold Plated	D-Type, Micro-D	0.043	0.05
C&K Aerospace 340107702B MDMA21P-FO	-55 °C	125 °C	Free Hanging (In-Line)	Dust Cap	Housing/Shell (Unthreaded)	Plug for Male Contacts	Black	21	2	Liquid Crystal Polymer (LCP), Glass Filled	Contacts Not Included	Signal	28 µin	0.7 µm	Aluminum Alloy, Gold Plated	D-Type, Micro-D	0.043	0.05
C&K Aerospace 340107702B MDMA25S-FO	-55 °C	125 °C	Free Hanging (In-Line)	Dust Cap	Housing/Shell (Unthreaded)	Receptacle for Female Contacts	Black		2	Liquid Crystal Polymer (LCP), Glass Filled	Contacts Not Included	Signal	28 µin	0.7 µm	Aluminum Alloy, Gold Plated	D-Type, Micro-D	0.043	0.05

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Type, Micro-D Connector 31 Position
