Specification	2351886-2

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.134 in
Current - UL	12 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.362 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Positions Per Level	2
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	150 V

2351886 Series

Part	Pitch	Termination Style	Mounting Type	Color	Contact Mating Finish	Positions Per Level	Number of Positions	Voltage - UL	Header Orientation	Type	Current - UL	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Contact Tail Length	Insulation Height	Housing Material	Material Flammability Rating
TE Connectivity AMP Connectors 1-2351886-0	0.138 in	Solder	Through Hole	Green	Tin	10	10	150 V	Vertical	Header Male Pins Shrouded (4 Side)	10 A	1	-40 °C	105 °C	Copper Alloy	0.134 in	0.362 in	Nylon 6/6 PA66 Polyamide	UL94 V-0
TE Connectivity AMP Connectors 2351886-2	0.138 in	Solder	Through Hole	Green	Tin	2	2	150 V	Vertical	Header Male Pins Shrouded (4 Side)	12 A	1	-40 °C	105 °C	Copper Alloy	0.134 in	0.362 in	Nylon 6/6 PA66 Polyamide	UL94 V-0
TE Connectivity AMP Connectors 2351886-8	0.138 in	Solder	Through Hole	Green	Tin	8	8	150 V	Vertical	Header Male Pins Shrouded (4 Side)	12 A	1	-40 °C	105 °C	Copper Alloy	0.134 in	0.362 in	Nylon 6/6 PA66 Polyamide	UL94 V-0
TE Connectivity AMP Connectors 2351886-4	0.138 in	Solder	Through Hole	Green	Tin	4	4	150 V	Vertical	Header Male Pins Shrouded (4 Side)	12 A	1	-40 °C	105 °C	Copper Alloy	0.134 in	0.362 in	Nylon 6/6 PA66 Polyamide	UL94 V-0

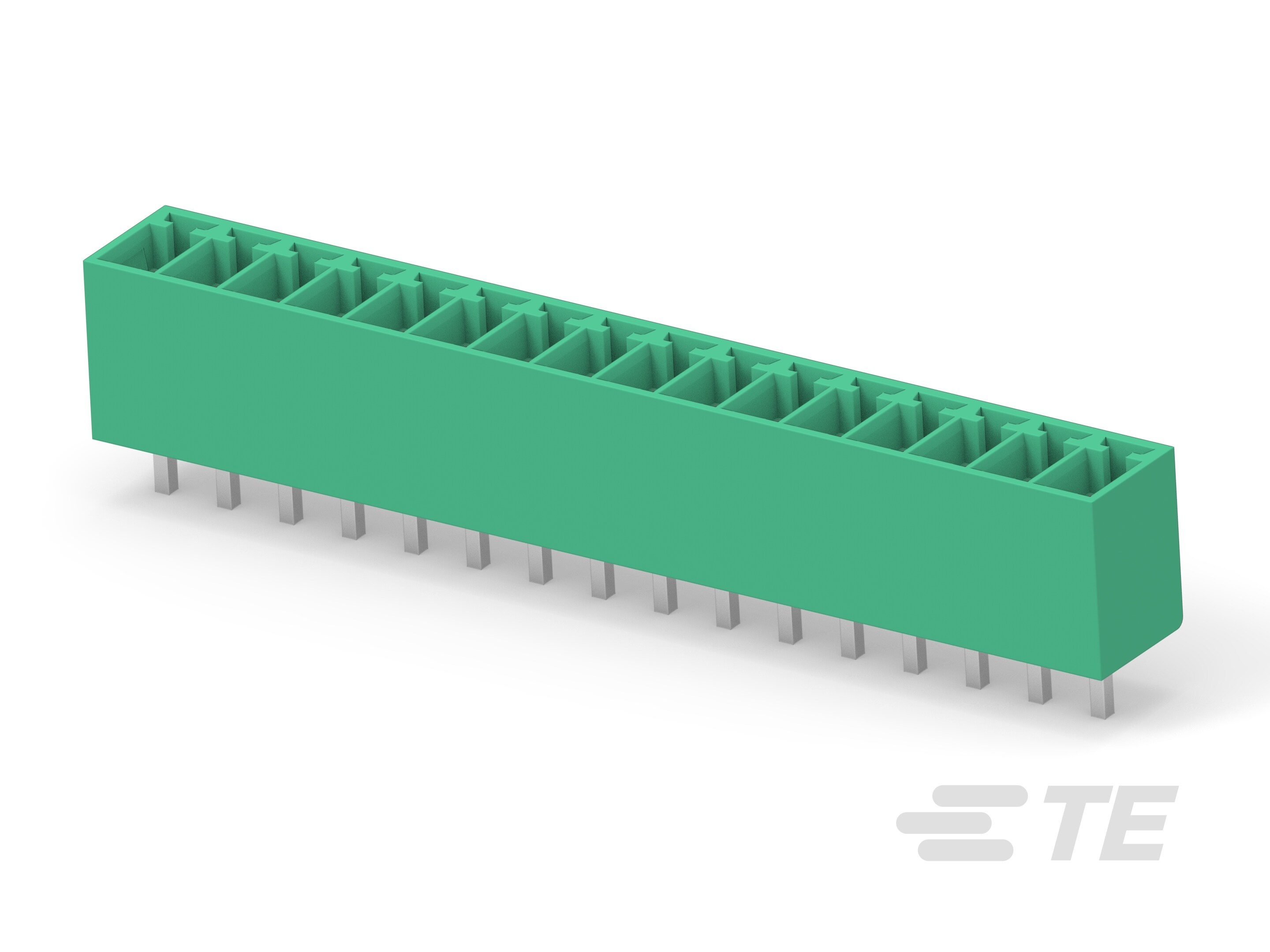

TE Connectivity AMP Connectors 1-2351886-6	0.138 in	Solder	Through Hole	Green	Tin	16	16	150 V	Vertical	Header Male Pins Shrouded (4 Side)	12 A	1	-40 °C	105 °C	Copper Alloy	0.134 in	0.362 in	Nylon 6/6 PA66 Polyamide	UL94 V-0
