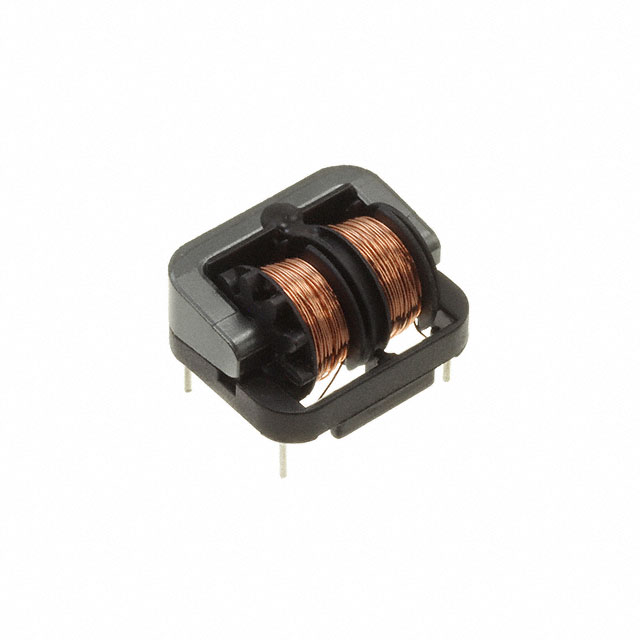

SSR10H-07330

Active

KEMET

SINGLE PHASE EMI FILTER,

Search across all available documentation for this part.

Active

KEMET

SINGLE PHASE EMI FILTER,

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Height (Max) [Max]	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Number of Lines	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max) [Max]	Mounting Type
KEMET SSR10H-14140	13.5 mm	0.531 in	250 V	400 mOhm	10 kHz 14 mH	2	4 Lead	Vertical	120 °C	-25 °C	Power Line	0.866 in	22 mm	0.709 "	18 mm	1.4 A	Through Hole
KEMET SSR10H-07330	13.5 mm	0.531 in	250 V	900 mOhm	10 kHz 33 mH	2	4 Lead	Vertical	120 °C	-25 °C		0.866 in	22 mm	0.63 in	16 mm	700 mA	Through Hole
KEMET SSR10H-11140	13.5 mm	0.531 in	250 V		10 kHz 14 mH	2	4 Lead	Vertical	120 °C	-25 °C		0.866 in	22 mm	0.63 in	16 mm	1.1 A	Through Hole
KEMET SSR10H-30016	13.5 mm	0.531 in	250 V	60 mOhm	1.6 mH	2	4 Lead	Vertical	120 °C	-25 °C		0.866 in	22 mm	0.63 in	16 mm	3 A	Through Hole
KEMET SSR10H-13097	13.5 mm	0.531 in	250 V	270 mOhm	9.7 mH	2	4 Lead	Vertical	120 °C	-25 °C		0.866 in	22 mm	0.63 in	16 mm	1.3 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

33 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 700mA DCR 900mOhm
