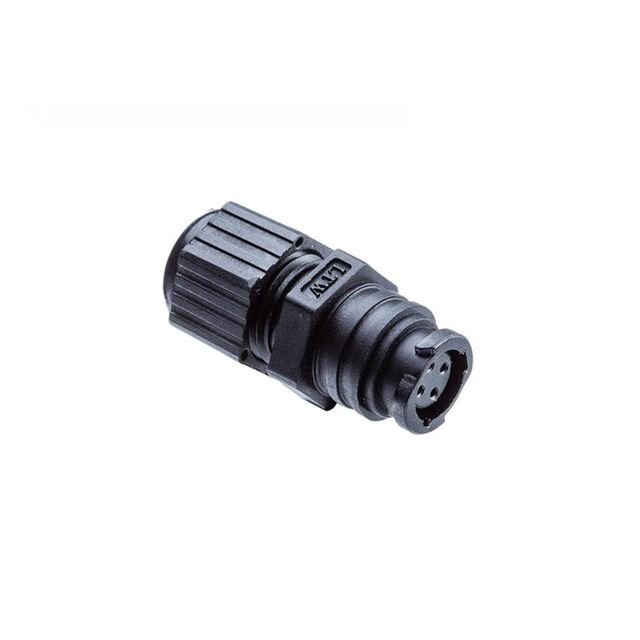

PLD-03BMFA-QL7001

Active

Amphenol LTW

CIRCULAR SIZE 12

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR SIZE 12

Technical Specifications

Parameters and characteristics for this part

Specification	PLD-03BMFA-QL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Nickel
Shell Size - Insert	PL
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Color	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Features	Orientation	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Mounting Type	Primary Material	Material Flammability Rating	Voltage Rating	Insert Material	Shell Size - Insert	Fastening Type	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Shielding
Amphenol LTW PLD-03BMFA-QL7001	Black	Nylon Polyamide (PA)	-40 °C	105 ░C	Nickel	Backshell	Keyed	Copper Alloy	4.5 mm 6.5 mm	0.177 in 0.256 in	Free Hanging (In-Line)	Metal	UL94 V-0	250 VAC	Nylon Polyamide (PA)	PL	Bayonet Lock	IP67 - Dust Tight Waterproof	Gold	5 A	Receptacle Female Sockets	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.46

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
