LCD-S101D14TR

Active

Lumex Opto/Components Inc.

LCD MOD 1 DIG 1 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 1 DIG 1 X 1 REFLECTIVE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

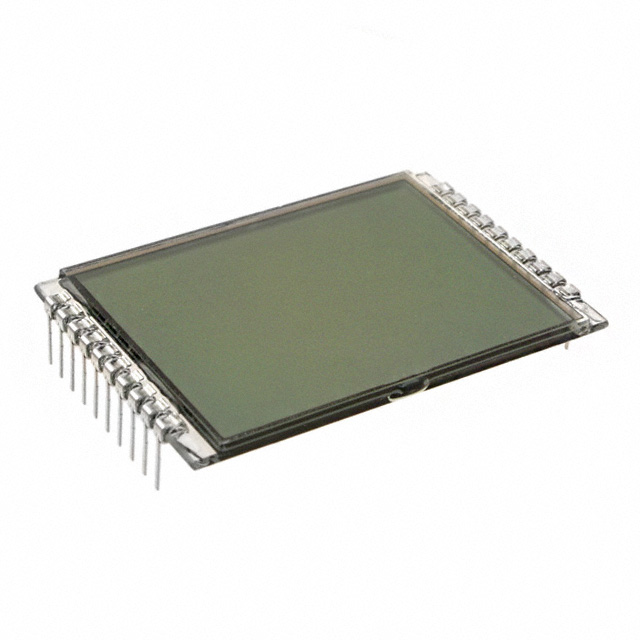

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 33.00mm x 50.00mm x 2.80mm

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LCD MOD 1 DIG 1 X 1 REFLECTIVE

Part	Number of Characters	Backlight	Viewing Area [x]	Viewing Area [y]	Character Size [y]	Character Size [z]	Character Format	Display Mode	Display Format [y]	Display Format [x]	Display Type	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Size [x]	Background Color	Character Size [custom]	Character Size [custom]
Lumex Opto/Components Inc. LCD-S101D30TR	1	Without Backlight	71.2 mm	89 mm	43.18 mm	76 mm	7-Segment	Reflective	1	1	TN - Twisted Nematic	76.2 mm	102.4 mm	2.8 mm	5 V	3 V
Lumex Opto/Components Inc. LCD-S101D22TR	1	Without Backlight	50.8 mm	65.02 mm	56.13 mm		7-Segment	Reflective	1	1	TN - Twisted Nematic	76.2 mm	55.88 mm	2.8 mm			36.7 mm
Lumex Opto/Components Inc. LCD-S101D40TR	1	Without Backlight	76.2 mm	109.22 mm	71.12 mm		7-Segment	Reflective	1	1	TN - Twisted Nematic	81.28 mm	122.56 mm	2.8 mm			101.6 mm
Lumex Opto/Components Inc. LCD-S101D14TF	1	Without Backlight	38.9 mm	27.9 mm			7-Segment	Transflective	1	1	TN - Twisted Nematic	50 mm	33 mm	2.8 mm				Gray	34.54 mm	19 mm
Lumex Opto/Components Inc. LCD-S101D14TR	1	Without Backlight	27.9 mm	38.9 mm			7-Segment	Reflective	1	1	TN - Twisted Nematic	33 mm	50 mm	2.8 mm					34.54 mm	19 mm
Lumex Opto/Components Inc. LCD-S101M71TR-02	1	Without Backlight	20.3 mm	19.86 mm				Reflective	1	1	TN - Twisted Nematic	25.4 mm	22.86 mm	2.8 mm				Gray
