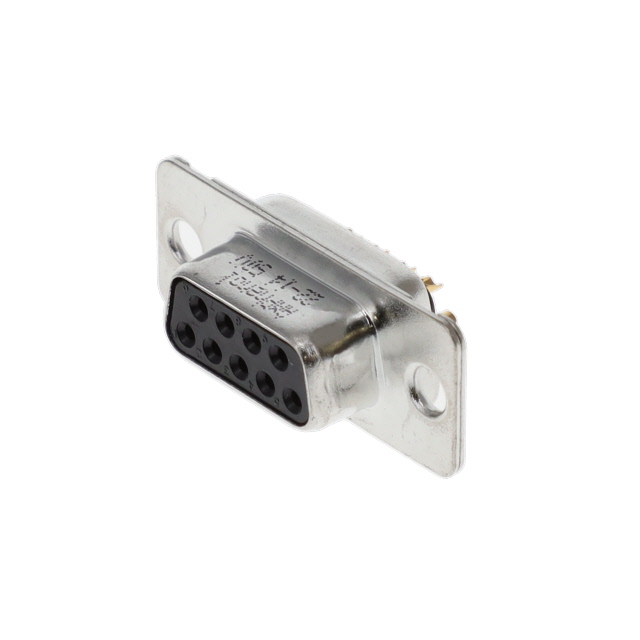

L177DE09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L177DE09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L177DE09S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	300 VDC

L177DE09 Series

Part	Number of Rows	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Material Flammability Rating	Contact Type	Number of Positions	Contact Material	Dielectric Material	Wire Gauge	Contact Finish	Current Rating (Amps)	Connector Style	Flange Feature	Voltage Rating	Mounting Type	Termination
Amphenol ICC (Commercial Products) L177DE09SST1	2	Receptacle Female Sockets	15 µin	0.38 µm	85 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Bronze	Thermoplastic Glass Filled	18 AWG	Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Free Hanging (In-Line)	Screw
Amphenol ICC (Commercial Products) L177DE09SST4	2	Receptacle Female Sockets	15 µin	0.38 µm	85 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Bronze	Thermoplastic Glass Filled	18 AWG	Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Free Hanging (In-Line)	Screw
Amphenol ICC (Commercial Products) L177DE09S	2	Receptacle Female Sockets	20 µin	0.51 µm	125 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Brass	Thermoplastic Glass Filled		Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) L177DE09SF179	2	Receptacle Female Sockets	20 µin	0.51 µm	125 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Brass	Thermoplastic Glass Filled		Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Panel Mount Through Hole	Wire Wrap
Amphenol ICC (Commercial Products) L177DE09SOL2RM21	2	Receptacle Female Sockets	20 µin	0.51 µm	125 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Brass	Thermoplastic Glass Filled		Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Through Hole	Solder
Amphenol ICC (Commercial Products) L177DE09SOL2	2	Receptacle Female Sockets	20 µin	0.51 µm	125 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Brass	Thermoplastic Glass Filled		Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Through Hole	Solder
Amphenol ICC (Commercial Products) L177DE09SST	2	Receptacle Female Sockets	15 µin	0.38 µm	125 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Brass	Thermoplastic Glass Filled	18 AWG	Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Free Hanging (In-Line)	Screw
Amphenol ICC (Commercial Products) L177DE09SST3	2	Receptacle Female Sockets	15 µin	0.38 µm	85 °C	-55 °C	DE E	1	Black	UL94 V-0	Signal	9	Bronze	Thermoplastic Glass Filled	18 AWG	Gold	7.5 A	D-Sub	Housing/Shell (Unthreaded)	300 VDC	Free Hanging (In-Line)	Screw

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.53
		10	$ 6.81
		25	$ 6.43
		50	$ 6.27
		100	$ 5.96
		300	$ 5.33
		500	$ 5.02
		1000	$ 4.39

Description

General part information

L177DE09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
