1426Y
ActiveHammond Manufacturing

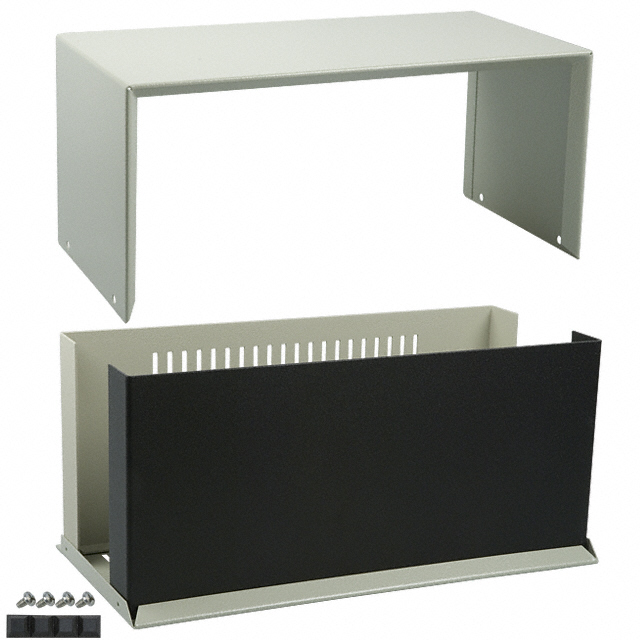

BEIGE STEEL/ALUMINUM INSTRUMENT ENCLOSURE
Deep-Dive with AI
Search across all available documentation for this part.
Documents1426 Series
1426Y
ActiveHammond Manufacturing
BEIGE STEEL/ALUMINUM INSTRUMENT ENCLOSURE
Deep-Dive with AI
Documents1426 Series
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1426Y | 1426 Series |
|---|---|---|
| Area (L x W) | 72 in² | 30 - 129 in² |
| Area (L x W) | 465 cm² | 194 - 832 cm² |
| Color | Off, White | Blue, Off, White |
| Container Type | Box | Box |
| Design | U Shaped Pieces | U Shaped Pieces |
| Features | Vented Panels, Separate Panel or Cover Thickness | Vented Panels, Separate Panel or Cover Thickness |
| Height [z] | 5.5 in | 5.5 - 101.6 mm |
| Height [z] | 139.7 mm | 101.6 - 139.7 mm |
| Material | Metal, Steel | Metal, Steel |
| Size / Dimension [x] | 12 in | 6 - 12 in |
| Size / Dimension [x] | 304.8 mm | 152.4 - 304.8 mm |
| Size / Dimension [y] | 152.4 mm | 127 - 279.4 mm |
| Size / Dimension [y] | 6 " | 5 - 11 " |
| Thickness | 20 | 20 |
| Weight | 0.222 lb | 0.222 - 5.3 lbs |
| Weight | 100.7 g | 1 - 725.7 kg |
1426 Series
BOX STEEL BLUE 8"L X 6"W
| Part | Weight | Weight | Design | Container Type | Material | Color | Area (L x W) | Area (L x W) | Thickness | Height [z] | Height [z] | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1426M-B | 1 kg | 2.3 lbs | U Shaped Pieces | Box | Metal, Steel | Blue | 48 in² | 310 cm² | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | ||||
Hammond Manufacturing 1426K-B | 725.7 g | 1.6 lbs | U Shaped Pieces | Box | Metal, Steel | Blue | 30 in˛ | 194 cm˛ | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | 6 in | 127 mm | 152.4 mm | 5 " |
Hammond Manufacturing 1426S | 1.5 kg | 3.2 lbs | U Shaped Pieces | Box | Metal, Steel | Off, White | 72 in² | 465 cm² | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | 12 in | 152.4 mm | 304.8 mm | 6 " |
Hammond Manufacturing 1426S-B | 1.5 kg | 3.2 lbs | U Shaped Pieces | Box | Metal, Steel | Blue | 72 in² | 465 cm² | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | 12 in | 152.4 mm | 304.8 mm | 6 " |
Hammond Manufacturing 1426M | 1 kg | 2.3 lbs | U Shaped Pieces | Box | Metal, Steel | Off, White | 48 in² | 310 cm² | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | ||||
Hammond Manufacturing 1426V-B | 1.7 kg | 3.7 lbs | U Shaped Pieces | Box | Metal, Steel | Blue | 96 in˛ | 619 cm˛ | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | 12 in | 203.2 mm | 304.8 mm | 8 in |
Hammond Manufacturing 1426Y-B | 1.7 kg | 3.7 lbs | U Shaped Pieces | Box | Metal, Steel | Blue | 72 in² | 465 cm² | 20 | 139.7 mm | 5.5 in | Separate Panel or Cover Thickness, Vented Panels | 12 in | 152.4 mm | 304.8 mm | 6 " |
Hammond Manufacturing 1426Q-B | 2.4 kg | 5.3 lbs | U Shaped Pieces | Box | Metal, Steel | Blue | 129 in² | 832 cm² | 20 | 139.7 mm | 5.5 in | Separate Panel or Cover Thickness, Vented Panels | 11.75 in | 279.4 mm | 298.45 mm | 11 in |
Hammond Manufacturing 1426Q | 2.4 kg | 5.3 lbs | U Shaped Pieces | Box | Metal, Steel | Off, White | 129 in² | 832 cm² | 20 | 139.7 mm | 5.5 in | Separate Panel or Cover Thickness, Vented Panels | 11.75 in | 279.4 mm | 298.45 mm | 11 in |
Hammond Manufacturing 1426K | 725.7 g | 1.6 lbs | U Shaped Pieces | Box | Metal, Steel | Off, White | 30 in˛ | 194 cm˛ | 20 | 101.6 mm | 101.6 mm | Separate Panel or Cover Thickness, Vented Panels | 6 in | 127 mm | 152.4 mm | 5 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 78.63 | |
| 5 | $ 73.72 | |||
| 10 | $ 68.81 | |||
| 25 | $ 67.58 | |||
| 50 | $ 66.35 | |||
| 100 | $ 65.36 | |||
Description
General part information
1426 Series
Box Metal, Steel White, Off U Shaped Pieces 12.000" L x 6.000" W (304.80mm x 152.40mm) X 5.500" (139.70mm)
