SKY66399-11
ObsoleteSkyworks Solutions Inc.
RF AMPLIFIER 1990-2000MHZ HIGH EFFICIENCY PA
SKY66399-11
ObsoleteSkyworks Solutions Inc.
RF AMPLIFIER 1990-2000MHZ HIGH EFFICIENCY PA
Description
General part information
SKY66399 Series

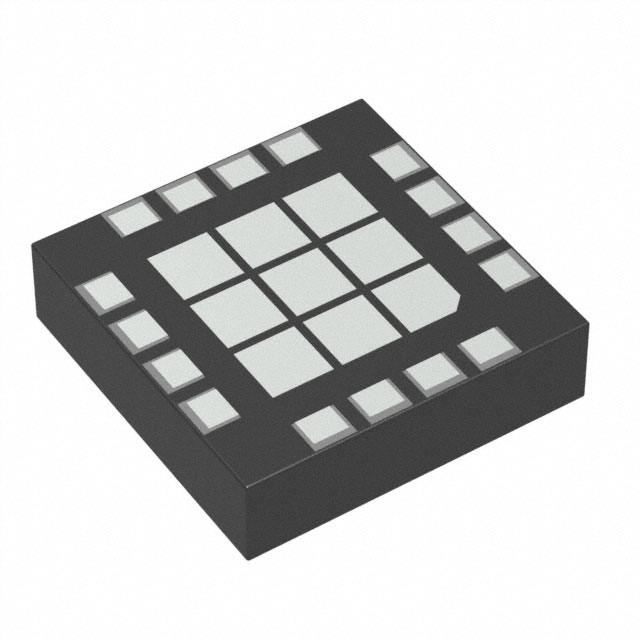

RF Amplifier IC LTE 1.9GHz ~ 2GHz 16-MCM (5x5)
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY66399-11 |
|---|---|
| Current - Supply | 90 mA |
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 1.9 GHz |
| Gain | 36.5 dB |
| Mounting Type | Surface Mount |
| P1dB | 36 dBm |
| Package / Case | 16-SMD Module |
| Package Length | 5 mm |
| Package Name | 16-MCM |
| Package Width | 5 mm |
| RF Type | LTE |
| Test Frequency (Maximum) | 2 GHz |
| Test Frequency (Minimum) | 1.9 GHz |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
