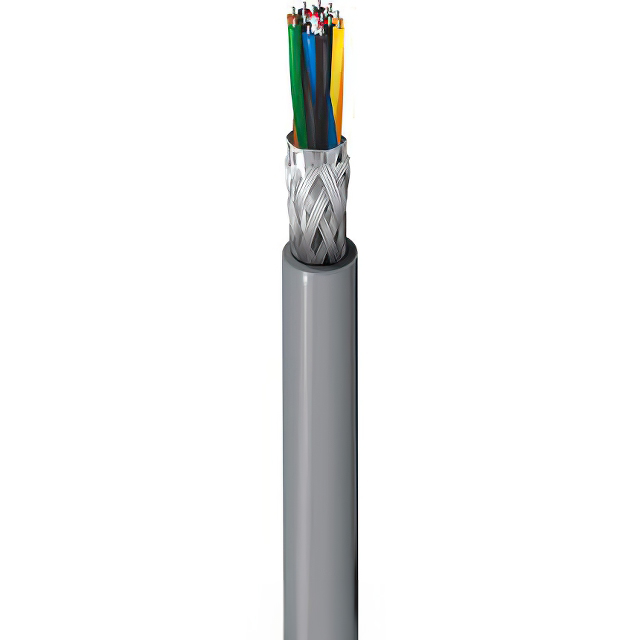

8138 060100

Active

Belden Inc.

MULTI-PAIR 16COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 16COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8138 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.33 in
Jacket (Insulation) Diameter [diameter]	8.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.039 in
Jacket (Insulation) Thickness	0.991 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Conductor Insulation	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Usage	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Ratings	Cable Type	Shield Coverage	Shield Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 8138 0601000	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-30 ░C	80 C	1000 ft	304.8 m	Computer	28 AWG	Poly-Vinyl Chloride (PVC)	16	UL Style 2919	Multi-Pair	65 % 100 %	Braid Foil	Chrome	36 AWG	7	Drain Wire	Copper Tinned	0.039 in	0.991 mm	0.33 in	8.38 mm
Belden Inc. 8138 060100	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-30 ░C	80 C			Computer	28 AWG	Poly-Vinyl Chloride (PVC)	16	UL Style 2919	Multi-Pair	65 % 100 %	Braid Foil	Chrome	36 AWG	7		Copper Tinned	0.039 in	0.991 mm	0.33 in	8.38 mm	30.5 m	100 ft
Belden Inc. 8138 060500	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-30 ░C	80 C			Computer	28 AWG	Poly-Vinyl Chloride (PVC)	16	UL Style 2919	Multi-Pair	65 % 100 %	Braid Foil	Chrome	36 AWG	7	Drain Wire	Copper Tinned	0.039 in	0.991 mm	0.33 in	8.38 mm	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (8 Pair) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 100.0' (30.5m)
