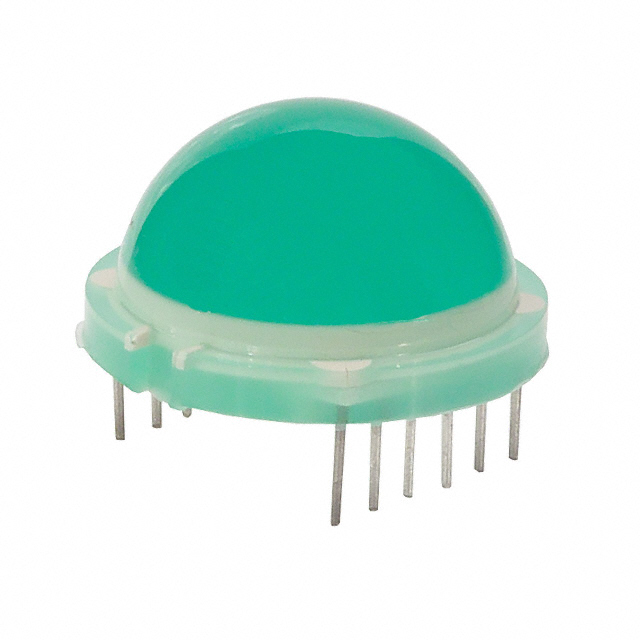

LTJ-811G
ActiveDiodes Inc
LED GREEN DIFFUSED T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTJ-811G
ActiveDiodes Inc
LED GREEN DIFFUSED T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTJ-811G |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 13.5 mm |
| Lens Color | Green |
| Lens Size [diameter] | 20 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 25 mcd |
| Mounting Type | Through Hole |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 12-DIP |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 588 nm |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.41 | |
| 40 | $ 1.47 | |||
| 120 | $ 1.31 | |||
| 520 | $ 1.16 | |||
| 1000 | $ 1.10 | |||
| 2000 | $ 1.06 | |||
| 5000 | $ 1.00 | |||
| 10000 | $ 0.97 | |||
Description
General part information
LTJ-811 Series
Green 588nm LED Indication - Discrete 2.1V 12-DIP (0.600", 15.24mm)
