Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/23YD5XN | D38999/23YD Series |
|---|---|---|
| Applications | Military, Medical, Automotive, Aerospace | Military, Medical, Automotive, Aerospace |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Features | Self Locking | Self Locking |
| Grade | Military | Military |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | - | 12 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | A, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 | MIL-DTL-38999 |
| Shell Finish | Passivated | Passivated |
| Shell Material | Stainless Steel | Stainless Steel |
| Shell Size - Insert | 15 | 15 |
| Shell Size, MIL | D | D |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3418.18 | |

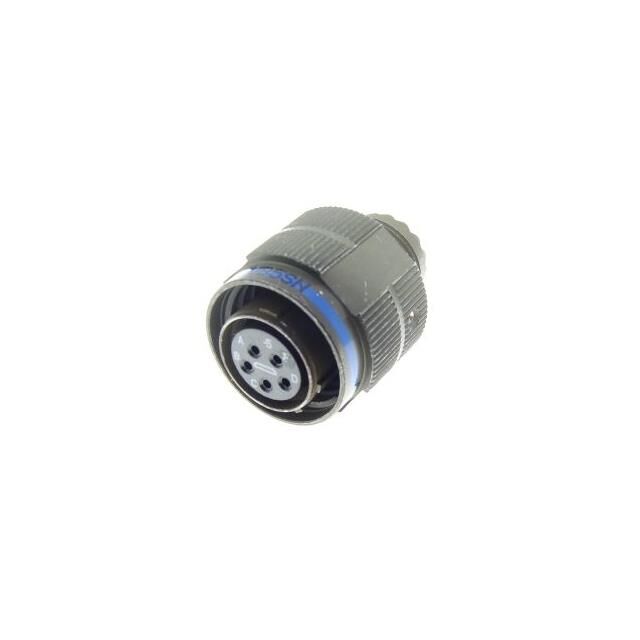

D38999/23YD Series
CONNECTOR
| Part | Grade | Contact Finish - Mating | Number of Positions | Orientation | Shell Size - Insert | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Material | Applications | Connector Type | Qualification | Shell Material | Mounting Feature | Color | Insert Material | Primary Material | Shell Size, MIL | Shell Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair D38999/23YD97PA | Military | Gold | 12 | A | 15 | IP68 - Dust Tight, Waterproof | -65 ░C | 200 °C | Self Locking | Copper Alloy | Aerospace, Automotive, Medical, Military | Male Pins, Receptacle | MIL-DTL-38999 | Stainless Steel | Bulkhead - Front Side Nut | Silver | Thermoplastic | Metal | D | Passivated | |
Glenair D38999/23YD5XN | Military | Gold | N | 15 | IP68 - Dust Tight, Waterproof | -65 ░C | 200 °C | Self Locking | Copper Alloy | Aerospace, Automotive, Medical, Military | Male Pins, Receptacle | MIL-DTL-38999 | Stainless Steel | Bulkhead - Front Side Nut | Silver | Thermoplastic | Metal | D | Passivated | Solder Eyelet(s) |
Description
General part information
D38999/23YD Series
5 Position Circular Connector Receptacle, Male Pins Solder Eyelet(s)
