5 INCH-G-MV-MINI
ActiveMcGill Microwave Systems
SENSOR 0.18PSIG 0.08" .02V
5 INCH-G-MV-MINI
ActiveMcGill Microwave Systems
SENSOR 0.18PSIG 0.08" .02V
Description
General part information

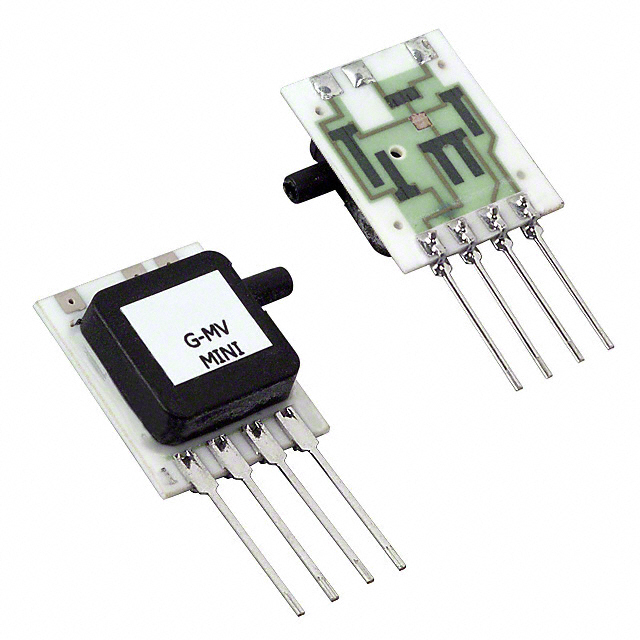

G-MV-MINI Series
Pressure Sensor 0.18PSI (1.25kPa) Vented Gauge Male - 0.08" (2.03mm) Tube 0 mV ~ 20 mV (12V) 4-SIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | 5 INCH-G-MV-MINI |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Mounting Type | Through Hole |
| Operating Pressure | 0.18 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 20 mV |
| Output Voltage (Min) | 0 mV |
| Package / Case | 4-SIP Module |
| Port Diameter | 0.08 in |
| Port Feature | Tube |
| Port Gender | Male |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
| Voltage - Supply | 16 V |
