53423-1
ActiveTE Connectivity AMP Connectors

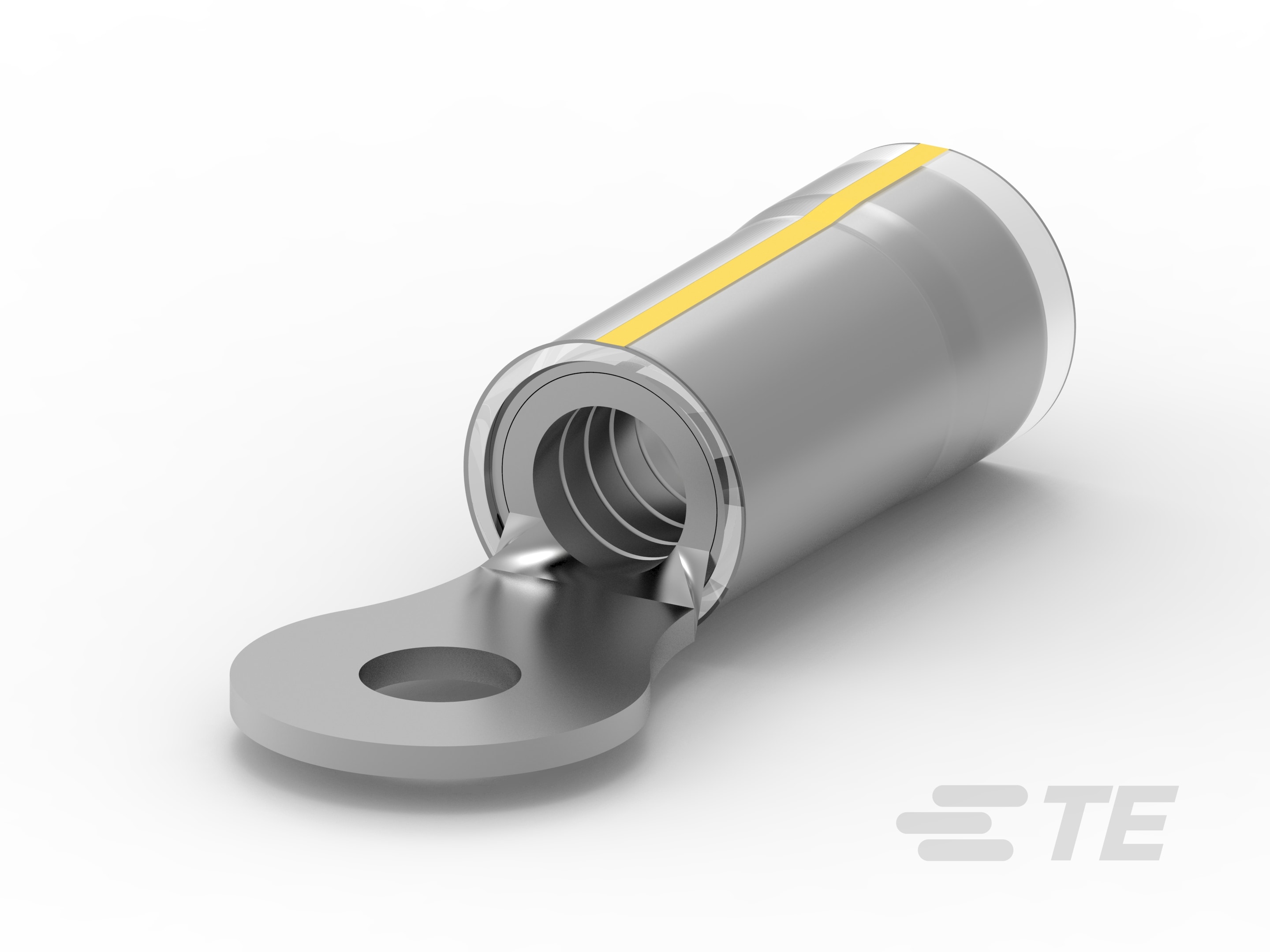

RING TONGUE TERMINAL, M3.5, #6, 10 AWG, 6.64 MM², PIDG SERIES, NATURAL
53423-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M3.5, #6, 10 AWG, 6.64 MM², PIDG SERIES, NATURAL
Description
General part information
53423 Series
Closed Ring Tongue Terminal, 12 – 10 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin-Lead Plating, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 53423-1 |
|---|---|
| Color | Natural, Yellow Stripe |
| Contact Finish | Tin-Lead |
| Contact Material | Copper |
| Insulation | Insulated |
| Insulation Diameter (Max) | 0.23 in |
| Insulation Diameter (Min) | 0.15 in |
| Length - Overall | 1.083 in |
| Material - Insulation | Polyvinylidene Fluoride, PVDF |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3.5 mm |
| Stud/Tab Size | M3.5 Stud |
| Stud/Tab Type | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.039 in |
| Width - Outer Edges | 0.375 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
