R413R347050T0K

Active

KEMET

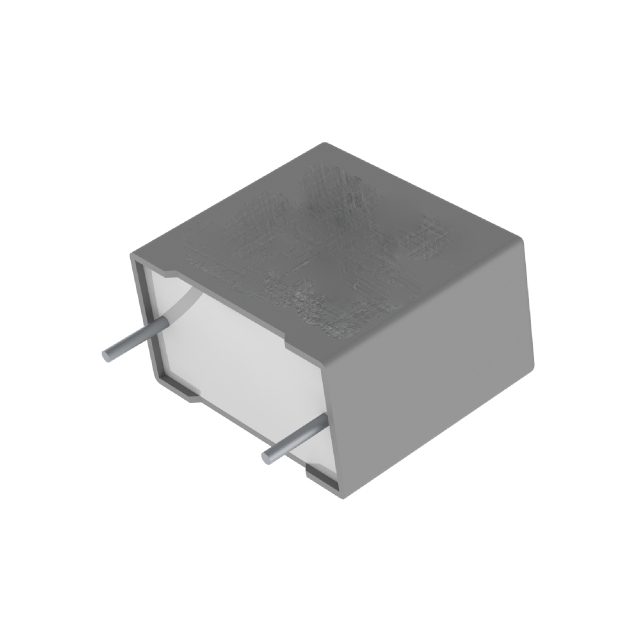

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.47 ΜF, ± 10%, Y2, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_F3120_R41-T_Y2_300.pdf R413R347050T0K Spec +4

R413R347050T0K

Active

KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.47 ΜF, ± 10%, Y2, THROUGH HOLE

Deep-Dive with AI

DocumentsKEM_F3120_R41-T_Y2_300.pdf R413R347050T0K Spec +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R413R347050T0K

Applications	EMI, RFI Suppression, Automotive
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	Y2, AEC-Q200, X1
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	0.709 "
Size / Dimension [y]	18 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	300 V
Voltage Rating - DC	1.5 kVDC
Voltage Rating - DC	1.5 kV

R413R Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Termination	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Applications	Tolerance	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]
KEMET R413R32204000M	32 mm	13 mm	1.26 in	0.512 in	0.22 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 °C	110 °C
KEMET R413R34705000M	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	110 °C	18 mm
KEMET R413R34704000M	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	110 °C	18 mm
KEMET R413R34700000M	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	110 °C	18 mm
KEMET R413R368050T0K	32 mm		1.26 in	0.709 "	680 nF	PC Pins	Metallized Polypropylene (PP)	1.5 kVDC	1.5 kV	300 V	Automotive EMI RFI Suppression	10 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	125 °C	18 mm
KEMET R413R347050T0K	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1.5 kVDC	1.5 kV	300 V	Automotive EMI RFI Suppression	10 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	125 °C	18 mm
KEMET R413R322050T0K	32 mm	13 mm	1.26 in	0.512 in	0.22 µF	PC Pins	Metallized Polypropylene (PP)	1.5 kVDC	1.5 kV	300 V	Automotive EMI RFI Suppression	10 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.77
		10	$ 2.90
		50	$ 2.62
		128	$ 2.25
		512	$ 1.76
		1024	$ 1.64
		2560	$ 1.58
		5120	$ 1.55
Newark	Each	100	$ 2.34
		500	$ 2.09
		1000	$ 1.83
		2500	$ 1.71

Description

General part information

R413R Series

R41T series are Class Y2, 300VAC, 125°C metallized polypropylene film EMI suppression capacitors. Capacitors are constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL94 V–0. Suitable for use in electromagnetic interference (EMI) suppression filter in line-to-ground and across-the-line applications requiring Y2/X1 safety classification. Also suitable for use in situations where failure of the capacitor could lead to danger of electric shock.
