MEZDPD4506AS-84F8

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 0.6-22V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MEZDPD4506AS-84F8

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 0.6-22V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEZDPD4506AS-84F8

Applications	ITE (Commercial)
Current - Output (Max) [Max]	6 A
Features	OCP, UVLO, OTP, OVP
Mounting Type	Surface Mount
Number of Outputs	1

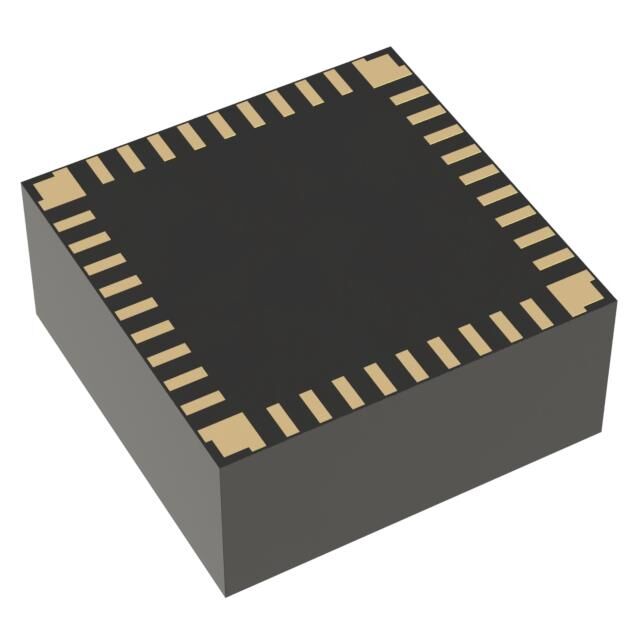

Package / Case	45-PowerBFLGA Module
Size / Dimension [x]	0.39 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	0.39 "
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.17 in
Size / Dimension [z]	4.4 mm
Supplier Device Package	45-LGA (10x10)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	45 V
Voltage - Input (Min) [Min]	4 V
Voltage - Output 1 [Max]	22 V
Voltage - Output 1 [Min]	0.6 V

MEZDPD4506 Series

Part	Supplier Device Package	Voltage - Input (Min) [Min]	Package / Case	Applications	Type	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Features	Supplied Contents	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Main Purpose	Regulator Topology	Frequency - Switching	Current - Output
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84D9	45-LGA (10x10)	9 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	15 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	5 V	6 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84EF	45-LGA (10x10)	40 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	32 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	5 V	4 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84DD	45-LGA (10x10)	20 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	28 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	3.3 V	6 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84D4	45-LGA (10x10)	4 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	12 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	3.3 V	6 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84D8	45-LGA (10x10)	9 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	15 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	3.3 V	6 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84DC	45-LGA (10x10)	20 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	28 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	12 V	6 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84F8	45-LGA (10x10)	4 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	45 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm		6 A	0.6 V	22 V	OCP OTP OVP UVLO
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84DE	45-LGA (10x10)	40 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	32 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm	5 V	6 A
MONOLITHIC POWER SYSTEMS (MPS) MEZDPD4506AS-84F9	45-LGA (10x10)	4 V	45-PowerBFLGA Module	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	1	45 V	0.17 in	0.39 "	0.39 "	4.4 mm	10 mm	10 mm		6 A	0.6 V	22 V	OCP OTP OVP UVLO
MONOLITHIC POWER SYSTEMS (MPS) PKT-MEZDPD4506A																				Accessories Board(s) Cable(s)	22 V	0.6 V	45 V	4 V	Non-Isolated	1	Fully Populated	mEZDPD4506A	DC/DC Step Down	Buck	600 kHz	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MEZDPD4506 Series

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 22V 6A 4V - 45V Input
