HGP.0E.304.CLLPV

Active

LEMO

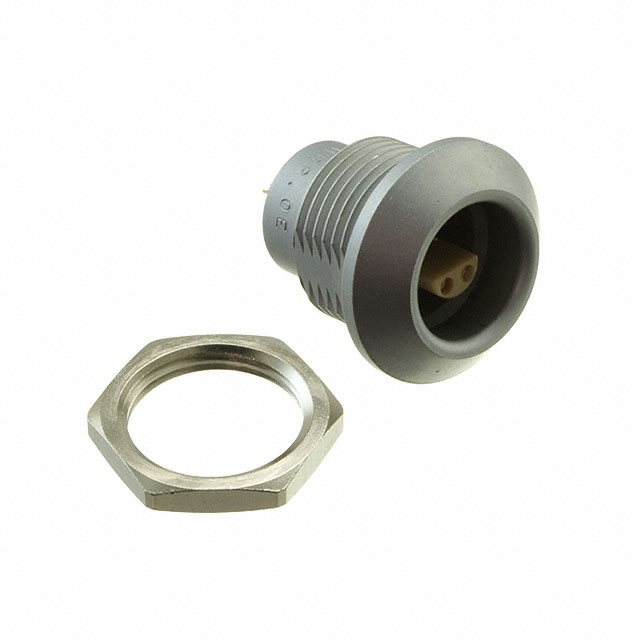

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HGP.0E.304.CLLPV

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.08
		10	$ 40.35
		25	$ 38.61
		50	$ 37.36
		100	$ 36.11
		250	$ 34.12

Description

General part information

HGP.0E Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGP.0E.304.CLLPV	HGP.0E Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	174A, 188A, 196A, 316B, 178B, RG-122, 174, 178, RG-174
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial, Triaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	7 A	4 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Vacuumtight, Potted	Vacuumtight, Potted
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	4	1 - 4
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 403
Shield Termination	-	Solder
Shielding	Shielded	Shielded

HGP.0E Series

CONN CIRC RCPT 2P GOLD SLDR CUP

Part	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Shell Finish	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Orientation	Contact Material	Features	Shell Material	Color	Primary Material	Shielding	Shell Size - Insert	Connector Type	Fastening Type	Insert Material	Ingress Protection	Cable Group	Number of Ports	Impedance	Housing Color	Connector Style	Body Material	Body Finish	Mating Cycles	Shield Termination	Contact Termination	Dielectric Material	Includes	Center Contact Plating	Center Contact Material
LEMO HGP.0E.302.CLLPV	UL94 V-0	10 A	2	Chrome	Gold	100 °C	-20 C	Bulkhead - Rear Side Nut	Keyed	Brass, Bronze	Potted, Vacuumtight	Brass	Silver	Metal	Shielded	302	Female Sockets, Male Pins, Receptacle	Push-Pull	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO HGP.0E.304.CLLPV	UL94 V-0	7 A	4	Chrome	Gold	100 °C	-20 C	Bulkhead - Rear Side Nut	Keyed	Brass, Bronze	Potted, Vacuumtight	Brass	Silver	Metal	Shielded	304	Female Sockets, Male Pins, Receptacle	Push-Pull	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO HGP.0E.250.CTLPV						100 °C	-20 C	Bulkhead - Rear Side Nut			Vacuumtight						Female Socket, Receptacle	Push-Pull		IP68 - Dust Tight, Waterproof	174, 174A, 178B, 188A, 196A, 316B, RG-122	1	50 Ohms	Silver	Coaxial	Brass	Chrome	5000	Solder	Solder Cup	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Lockwasher, 1 Nut	Gold	Beryllium Copper
LEMO HGP.0E.302.CLLP	UL94 V-0	10 A	2	Chrome	Gold	100 °C	-20 C	Bulkhead - Rear Side Nut	Keyed	Brass, Bronze	Potted	Brass	Silver	Metal	Shielded	302	Female Sockets, Male Pins, Receptacle	Push-Pull	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO HGP.0E.650.CTLP						100 °C	-20 C	Bulkhead - Rear Side Nut									Female Socket, Receptacle	Push-Pull		IP68 - Dust Tight, Waterproof	178, RG-174	1	50 Ohms	Silver	Triaxial	Brass	Chrome	5000	Solder	Solder Cup	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Lockwasher, 1 Nut	Gold	Beryllium Copper
LEMO HGP.0E.304.CLLP	UL94 V-0	7 A	4	Chrome	Gold	100 °C	-20 C	Bulkhead - Rear Side Nut	Keyed	Brass, Bronze	Potted	Brass	Silver	Metal	Shielded	304	Female Sockets, Male Pins, Receptacle	Push-Pull	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
LEMO HGP.0E.250.CTLP						100 °C	-20 C	Bulkhead - Rear Side Nut									Female Socket, Receptacle	Push-Pull		IP68 - Dust Tight, Waterproof	174, 174A, 178B, 188A, 196A, 316B, RG-122		50 Ohms	Silver	Coaxial	Brass	Chrome	5000	Solder	Solder Cup	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Lockwasher, 1 Nut	Gold	Beryllium Copper
LEMO HGP.0E.403.CTLPV		4 A	1	Chrome	Gold	100 °C	-20 C	Bulkhead - Rear Side Nut	Keyed	Bronze	Potted, Vacuumtight	Brass	Silver	Metal	Shielded	403	Receptacle, Female Sockets	Push-Pull	Polyetheretherketone (PEEK)	IP68 - Dust Tight, Waterproof
