AXF5A8012A

Active

Panasonic Electric Works

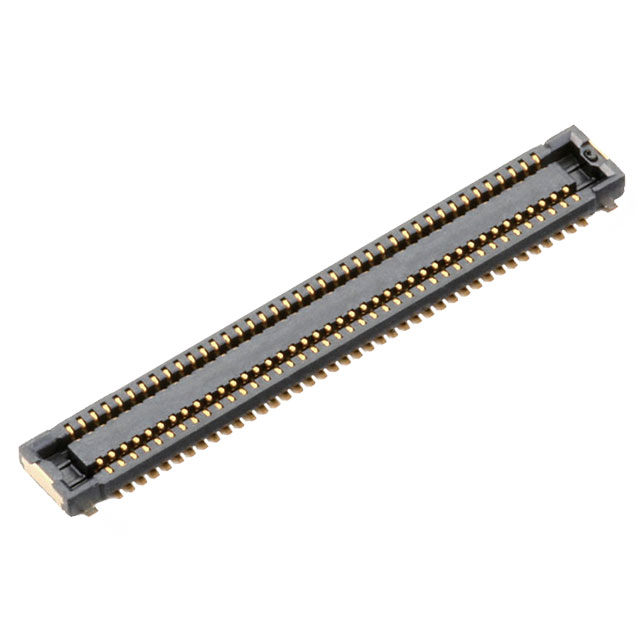

CONN SOCKET 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A8012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Contact Finish	Number of Positions	Mounting Type	Connector Type	Number of Rows	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights
Panasonic Electric Works AXF5A8012A	Gold	80	Surface Mount	Socket Center Strip Contacts	2	0.03 in	0.75 mm	0.35 mm	0.014 in	Solder Retention	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Socket, Center Strip Contacts Surface Mount Gold
