12226-5150-00FR

Active

JE150323127 12226-5150-00FR=26/SDR/RC/BMT/RA/THRU/SCW/7.6AU ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

JE150323127 12226-5150-00FR=26/SDR/RC/BMT/RA/THRU/SCW/7.6AU ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

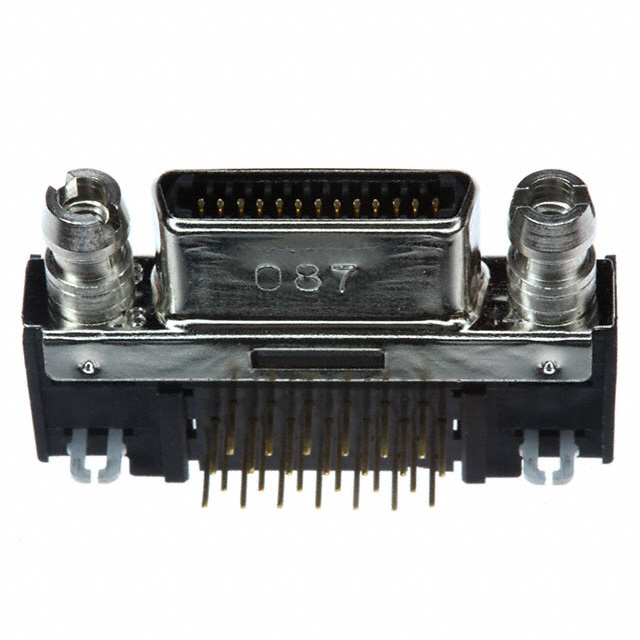

26 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder

Technical documentation and resources

Specification	12226-5150-00FR	12226 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.203 - 0.76 Ám
Contact Finish Thickness	30 Áin	8 - 30 Áin
Features	Shielded, Board Lock	Shielded, Board Lock, Board Guide
Flange Feature	M2	M2, Housing/Shell
Flange Feature	-	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Surface Mount, Right Angle, Right Angle
Number of Positions	26	26
Number of Rows	2	2
Termination	Solder	Solder

Part	Contact Finish	Mounting Type	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Connector Style	Number of Rows	Termination	Features	Flange Feature
3M 12226-1150-00FR	Gold	Panel Mount, Through Hole	26	Receptacle	0.76 Ám	30 Áin	M2	Outer Shroud Contacts	2	Solder	Board Lock, Shielded
3M 12226-8200-00PL	Gold	Surface Mount, Right Angle	26	Receptacle	0.203 çm	8 çin	M2	Outer Shroud Contacts	2	Solder
3M 12226-5150-00FR	Gold	Panel Mount, Right Angle, Through Hole	26	Receptacle	0.76 Ám	30 Áin	M2	Outer Shroud Contacts	2	Solder	Board Lock, Shielded
3M 12226-8250-00PL	Gold	Surface Mount, Right Angle	26	Receptacle	0.203 çm	8 çin	M2	Outer Shroud Contacts	2	Solder	Board Guide, Shielded
3M 12226-5110-00FR	Gold	Panel Mount, Right Angle, Through Hole	26	Receptacle	0.76 Ám	30 Áin	Housing/Shell	Outer Shroud Contacts	2	Solder	Board Lock, Shielded	2.6 M
3M 12226-1150-00PL	Gold	Panel Mount, Through Hole	26	Receptacle	0.203 çm	8 çin	M2	Outer Shroud Contacts	2	Solder	Board Lock, Shielded
3M 12226-1110-00FR	Gold	Through Hole	26	Receptacle	0.76 Ám	30 Áin		Outer Shroud Contacts	2	Solder	Shielded
3M 12226-8250-00FR	Gold	Surface Mount, Right Angle	26	Receptacle	0.76 Ám	30 Áin	M2	Outer Shroud Contacts	2	Solder	Board Guide, Shielded
