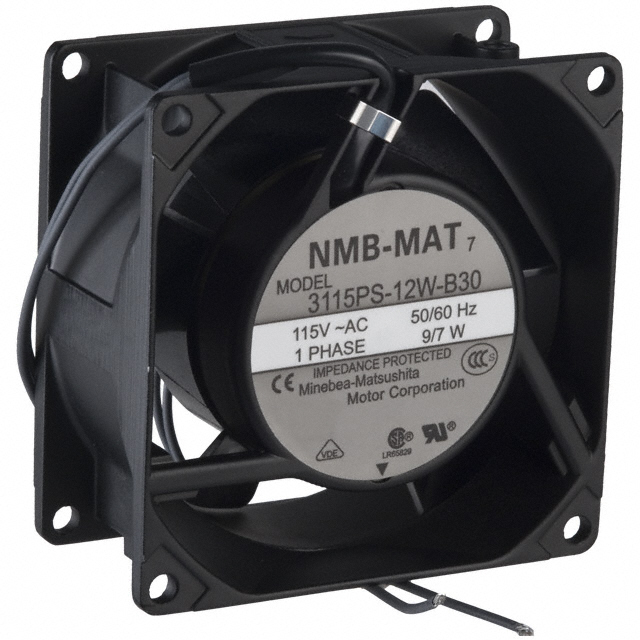

3115PS-12W-B30-A00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 80X38MM 115VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
3115PS-12W-B30-A00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 80X38MM 115VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3115PS-12W-B30-A00 |
|---|---|
| Air Flow | 32 CFM |
| Air Flow | 0.896 m³/min |
| Approval Agency | CSA, UL, VDE, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 110 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Noise | 38 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 7 W |
| RPM | 3200 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 49.8 Pa |
| Static Pressure | 0.2 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 115 VAC |
| Weight | 0.59 lb |
| Weight | 267.62 g |
| Width [y] | 38 mm |
3115PS Series
| Part | Power (Watts) | Voltage - Rated | Material - Blade | Noise | Air Flow | Air Flow | RPM | Material - Frame | Bearing Type | Approval Agency | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Weight | Weight | Fan Type | Lifetime @ Temp. | Termination | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 6 W | 240 VAC | Fiberglass Reinforced Polycarbonate (PC) | 35 dB | 26.5 CFM | 0.742 m³/min | 2600 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 37.2 Pa | 0.149 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 45 mA | 80 mm | 80 mm | 269.89 g | 0.595 lb | Tubeaxial | 50000 Hrs | 2 Terminals | 38 mm |
NMB TECHNOLOGIES | 100 VAC | Fiberglass Reinforced Polycarbonate (PC) | 32 dB | 24 CFM | 0.672 mł/min | 2300 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 29.4 Pa | 0.118 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 70 mA | 80 mm | 80 mm | 269.89 g | 0.595 lb | Tubeaxial | 50000 Hrs | 2 Terminals | 38 mm | |
NMB TECHNOLOGIES | 6 W | 240 VAC | Fiberglass Reinforced Polycarbonate (PC) | 26 dB | 21.6 CFM | 0.605 m³/min | 2150 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 25.4 Pa | 0.102 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 0.055 A | 80 mm | 80 mm | 269.89 g | 0.595 lb | Tubeaxial | 50000 Hrs | 2 Terminals | 38 mm |
NMB TECHNOLOGIES | 5 W | 230 VAC | Fiberglass Reinforced Polycarbonate (PC) | 26 dB | 22 CFM | 0.616 m³/min | 2100 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 24.5 Pa | 0.098 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 50 mA | 80 mm | 80 mm | 267.62 g | 0.59 lb | Tubeaxial | 50000 Hrs | 2 Wire Leads | 38 mm |
NMB TECHNOLOGIES | 6 W | 230 VAC | Fiberglass Reinforced Polycarbonate (PC) | 34 dB(A) | 26 CFM | 0.728 m³/min | 2500 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 35.2 Pa | 0.14 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 45 mA | 80 mm | 80 mm | 267.62 g | 0.59 lb | Tubeaxial | 50000 Hrs | 2 Wire Leads | 38 mm |
NMB TECHNOLOGIES | 6 W | 230 VAC | Fiberglass Reinforced Polycarbonate (PC) | 34 dB(A) | 26 CFM | 0.728 m³/min | 2500 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 35.2 Pa | 0.14 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 45 mA | 80 mm | 80 mm | 267.62 g | 0.59 lb | Tubeaxial | 50000 Hrs | 2 Terminals | 38 mm |
NMB TECHNOLOGIES | 200 VAC | Fiberglass Reinforced Polycarbonate (PC) | 26 dB | 19.4 CFM | 0.543 m³/min | 1900 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 21.5 Pa | 0.086 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 40 mA | 80 mm | 80 mm | 269.89 g | 0.595 lb | Tubeaxial | 50000 Hrs | 2 Terminals | 38 mm | |
NMB TECHNOLOGIES | 7 W | 115 VAC | Fiberglass Reinforced Polycarbonate (PC) | 38 dB(A) | 32 CFM | 0.896 m³/min | 3200 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 49.8 Pa | 0.2 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 110 mA | 80 mm | 80 mm | 267.62 g | 0.59 lb | Tubeaxial | 50000 Hrs | 2 Wire Leads | 38 mm |
NMB TECHNOLOGIES | 4.5 W | 115 VAC | Fiberglass Reinforced Polycarbonate (PC) | 32 dB | 24 CFM | 0.672 mł/min | 2300 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 30 Pa | 0.12 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 70 mA | 80 mm | 80 mm | 267.62 g | 0.59 lb | Tubeaxial | 50000 Hrs | 2 Wire Leads | 38 mm |
NMB TECHNOLOGIES | 100 VAC | Fiberglass Reinforced Polycarbonate (PC) | 25 dB(A) | 19.4 CFM | 0.543 m³/min | 1900 RPM | Aluminum | Ball | CE CSA TUV UL VDE | 21.5 Pa | 0.086 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | 0.055 A | 80 mm | 80 mm | 269.89 g | 0.595 lb | Tubeaxial | 50000 Hrs | 2 Terminals | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.84 | |
| 10 | $ 14.12 | |||
| 25 | $ 13.49 | |||
| 50 | $ 13.03 | |||
| 100 | $ 12.59 | |||
| 250 | $ 12.03 | |||
| 500 | $ 11.62 | |||
Description
General part information
3115PS Series
Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 32.0 CFM (0.896mł/min) 2 Wire Leads
