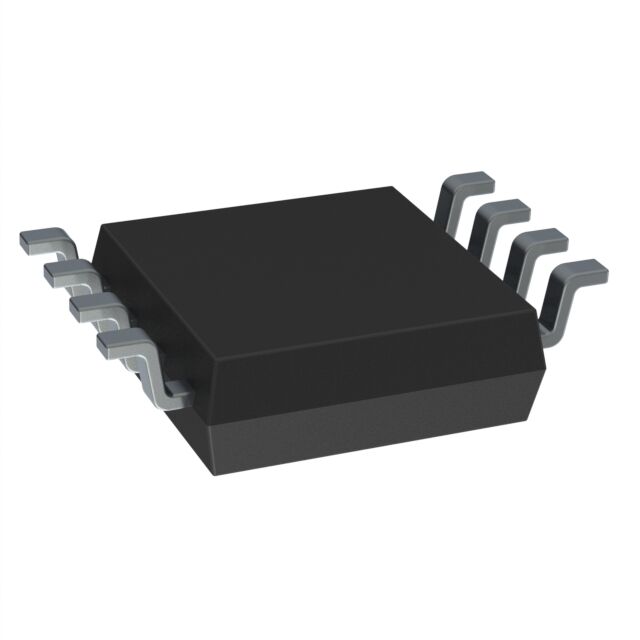

N25Q032A13ESE40F TR

Obsolete

Micron Technology Inc.

IC FLASH 32MBIT SPI 108MHZ 8SO

N25Q032A13ESE40F TR

Obsolete

Micron Technology Inc.

IC FLASH 32MBIT SPI 108MHZ 8SO

Description Specifications Series Pricing CAD Documents

Description

General part information

N25Q032A13 Series

FLASH - NOR Memory IC 32Mbit SPI 108 MHz 8-SO

Technical Specifications

Parameters and characteristics for this part

Specification	N25Q032A13ESE40F TR

Clock Frequency	108 MHz
Memory Depth	8 M
Memory Format	FLASH
Memory Interface (Type)	SPI
Memory Size	4 MB
Memory Type	Non-Volatile
Memory Width	4 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Length	0.209 in
Package Name	8-SOIC, 8-SO
Package Width	5.3 mm
Technology	FLASH - NOR
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	2.7 V
Write Cycle Time - Page	5 ms
Write Cycle Time - Word	8 ms

N25Q032A13 Series

Part	Memory Depth	Memory Width	Package Name	Memory Interface (Type)	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Memory Size	Write Cycle Time - Page	Write Cycle Time - Word	Memory Type	Memory Format	Package Length	Package Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Clock Frequency	Package / Case
Micron Technology Inc. N25Q032A13ESE40F	8 M	4 bit	8-SOIC 8-SOP2	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	0.209 in	5.3 mm	3.6 V	2.7 V	Surface Mount	108 MHz
Micron Technology Inc. N25Q032A13EF440F TR	8 M	4 bit	8-U-PDFN	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	4 mm	3 mm	3.6 V	2.7 V	Surface Mount	108 MHz	8-UDFN
Micron Technology Inc. N25Q032A13EV7A0	8 M	4 bit		SPI	125 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH			3.6 V	2.7 V		108 MHz
Micron Technology Inc. N25Q032A13E1241E	8 M	4 bit	24-T-PBGA	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	6 mm	8 mm	3.6 V	2.7 V	Surface Mount	108 MHz	24-TBGA
Micron Technology Inc. N25Q032A13ESE40F TR	8 M	4 bit	8-SO 8-SOIC	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	0.209 in	5.3 mm	3.6 V	2.7 V	Surface Mount	108 MHz
Micron Technology Inc. N25Q032A13EF640F TR	8 M	4 bit	8-VDFN	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	6 mm	5 mm	3.6 V	2.7 V	Surface Mount	108 MHz	8-VDFN Exposed Pad
Micron Technology Inc. N25Q032A13ESEC0G	8 M	4 bit	8-SO W 8-SOIC	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	0.209 in	5.3 mm	3.6 V	2.7 V	Surface Mount	108 MHz
Micron Technology Inc. N25Q032A13EF840E	8 M	4 bit	8-VDFPN (MLP8)	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	8 mm	6 mm	3.6 V	2.7 V	Surface Mount	108 MHz	8-VDFN Exposed Pad
Micron Technology Inc. N25Q032A13ESC40G	8 M	4 bit	8-SOIC 8-SOP2	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	0.154 in	3.9 mm	3.6 V	2.7 V	Surface Mount	108 MHz
Micron Technology Inc. N25Q032A13EF840F TR	8 M	4 bit	8-VDFPN (MLP8)	SPI	85 °C	-40 °C	FLASH - NOR	4 MB	5 ms	8 ms	Non-Volatile	FLASH	8 mm	6 mm	3.6 V	2.7 V	Surface Mount	108 MHz	8-VDFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
