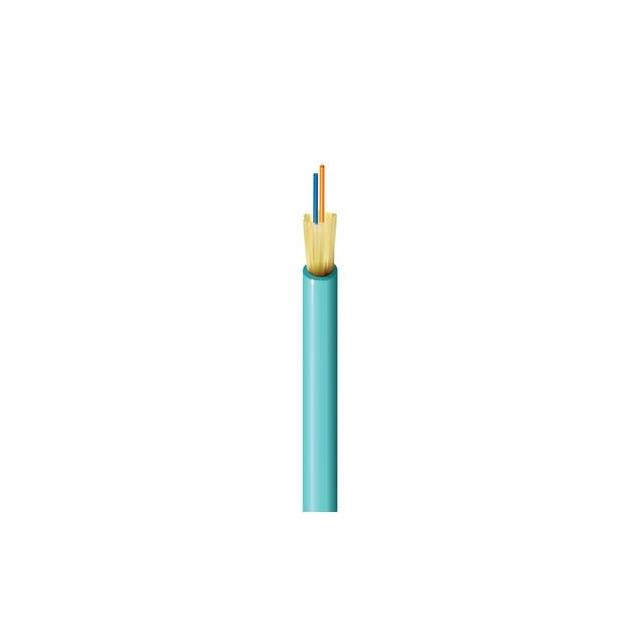

FD4D002L9A

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FD4D002L9A

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Rip Cord
Features	2 pcs per Pkg
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket Color	Aqua
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Core Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cladding Diameter [diameter]	Jacket Color	Tensile Strength	Features	Features	Type	Ratings	Style	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material
Belden Inc. FD4D002L9A	50 µm	-40 °C	70 °C	125 µm	Aqua	20.4 kg	Rip Cord	2 pcs per Pkg	Multimode	OFNR	Multiple Fibers	4.67 mm	0.184 in
Belden Inc. FD4D002L9	50 µm	-40 °C	70 °C	125 µm	Black	20.4 kg	Rip Cord	2 pcs per Pkg	Multimode	OFNR	Multiple Fibers	4.67 mm	0.184 in
Belden Inc. FD4D002P9	50 µm	-40 °C	70 °C	125 µm	Black	20.4 kg	Rip Cord	2 pcs per Pkg	Multimode	OFNP	Multiple Fibers	4.42 mm	0.174 "	Poly-Vinyl Chloride (PVC)
Belden Inc. FD4D002R9	50 µm	-40 °C	70 °C	125 µm	Black	20.4 kg	Rip Cord	2 pcs per Pkg	Multimode	OFNR	Multiple Fibers	4.67 mm	0.184 in	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1.94

General part information

Fiber Optic Cable Aqua Multimode 125µm
