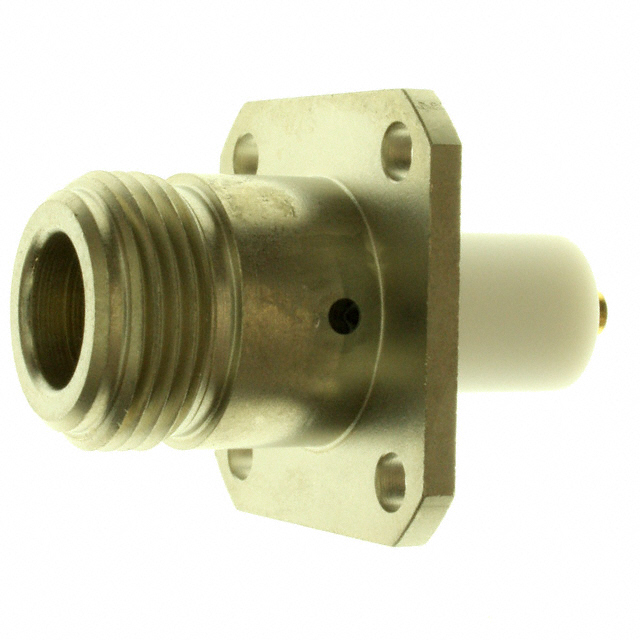

1057290-1
ActiveTE Connectivity AMP Connectors
CONN N RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1057290-1
ActiveTE Connectivity AMP Connectors
CONN N RCPT STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1057290-1 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Extended Insulation |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.27 | |
| 25 | $ 19.39 | |||
| 100 | $ 17.92 | |||
1057290 Series
CONN N RCPT STR 50 OHM SOLDER
| Part | Contact Termination | Dielectric Material | Number of Ports | Center Contact Material | Frequency - Max [Max] | Mounting Feature | Features | Center Contact Plating | Voltage Rating | Mating Cycles | Housing Color | Shield Termination | Connector Style | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1057290-1 | Solder | Polytetrafluoroethylene (PTFE) | 1 | Beryllium Copper | 11 GHz | Flange | Extended Insulation | Gold | 250 VDC | 500 | Silver | Solder | N Type | Female Socket, Receptacle | -65 ░C | 165 °C | Brass | Nickel | 50 Ohms |
Description
General part information
1057290 Series
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
