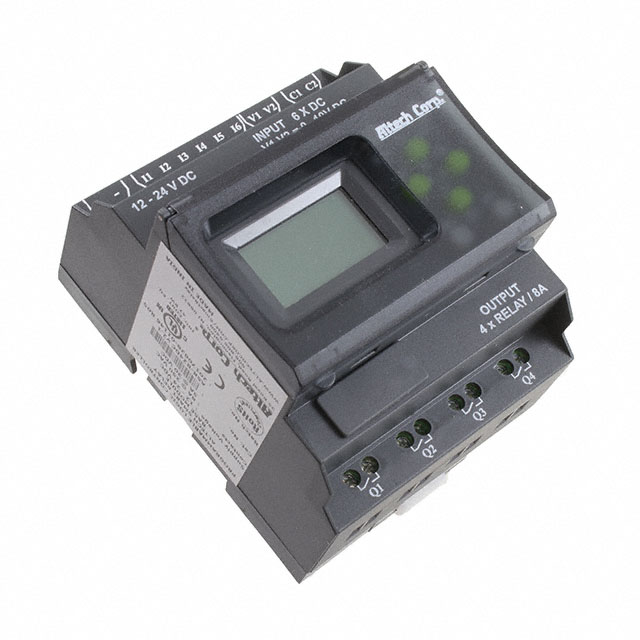

Specification	ASR-B24DC-START

Additional Input Options	Analog/Digital (2)
Approval Agency	cULus, CE
Communications	RS-485
Display Type	LCD - Black Characters, Green Backlight
Features	Cable, Software), Starter Kit (Controller
Features - Starter Kit	Controller, Software, Cable
Ingress Protection	IP40
Input Types	Digital (6), Digital, Analog/Digital
Maximum Expandable Modules	3 Modules
Mounting Type	DIN Rail
Number of Analog Inputs	2
Number of Digital Inputs	6
Number of Inputs	8
Number of Outputs	4
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Output Type	Relay
Software	ARS-SOFT
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	12 VDC

ASR-B24 Series

Part	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection	Software	Communications	Number of Outputs	Output Type	Mounting Type	Display Type	Input Types	Additional Input Options	Number of Inputs	Number of Digital Inputs	Number of Analog Inputs	Maximum Expandable Modules	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Features	Features - Starter Kit
Altech Corporation ASR-B24DC	CE cULus	-10 °C	55 °C	IP40	ARS-SOFT	RS-485	4	Relay	DIN Rail	Green Backlight LCD - Black Characters	Analog/Digital Digital Digital (6)	Analog/Digital (2)	8	6	2	3 Modules	12 VDC	24 VAC
Altech Corporation ASR-B24DC-START	CE cULus	-10 °C	55 °C	IP40	ARS-SOFT	RS-485	4	Relay	DIN Rail	Green Backlight LCD - Black Characters	Analog/Digital Digital Digital (6)	Analog/Digital (2)	8	6	2	3 Modules	12 VDC	24 VAC	Cable Software) Starter Kit (Controller	Cable Controller Software
