Specification	EX-19EB-R

Cable Length	78.74 in
Connection Method	Cable
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Output Configuration	NPN - Open Collector, Dark-ON
Response Time	500 µs
Sensing Distance	39.37 "
Sensing Method	Through-Beam
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	12 VDC

EX-19 Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Sensing Distance	Operating Temperature (Min)	Operating Temperature (Max)	Light Source	Connection Method	Output Configuration	Cable Length	Sensing Method	Response Time	Ingress Protection
Panasonic Industrial Automation Sales EX-19EB-R	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Dark-ON NPN - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19SA-PN	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Light-ON PNP - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19SA	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Light-ON NPN - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19B-C5	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Dark-ON NPN - Open Collector	196.85 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19EB-PN	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Dark-ON PNP - Open Collector	78.74 in	Through-Beam	500 µs	IP67

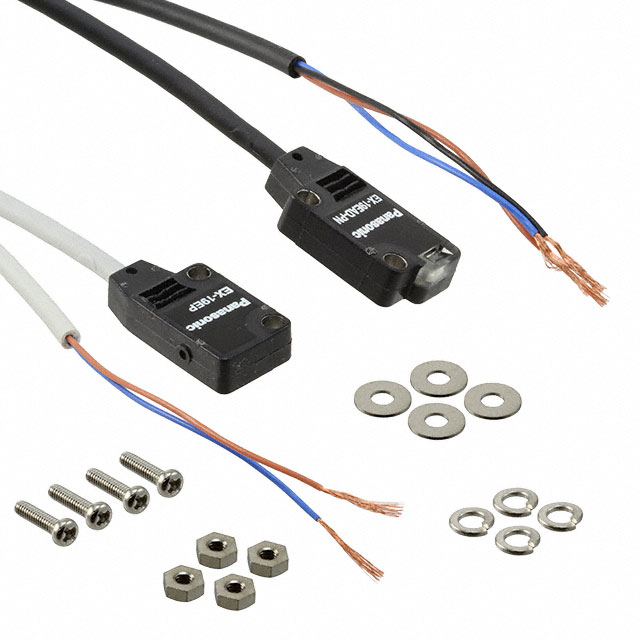

Panasonic Industrial Automation Sales EX-19EA-PN	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Light-ON PNP - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19B-PN-CN03-M8	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Dark-ON PNP - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19A-PN	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Light-ON PNP - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19SB	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Dark-ON NPN - Open Collector	78.74 in	Through-Beam	500 µs	IP67
Panasonic Industrial Automation Sales EX-19A	12 VDC	24 VAC	39.37 "	-25 °C	55 °C	Red LED	Cable	Light-ON NPN - Open Collector	78.74 in	Through-Beam	500 µs	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EX-19EB-R | Datasheet
