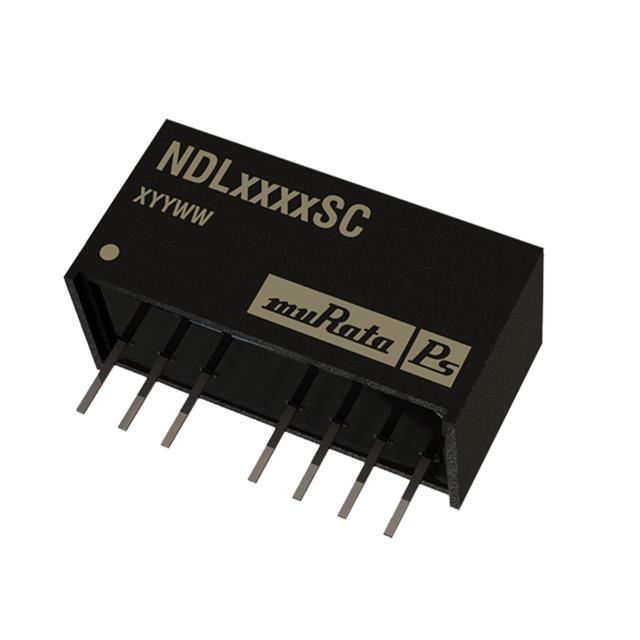

NDL4805SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 2W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 2W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 400mA 36V - 72V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 2W

Part	Type	Efficiency	Voltage - Isolation	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1	Mounting Type
Murata Power Solutions Inc. NDL4805SC	Isolated Module	73 %	1000 V	8-SIP Module	7 Leads	85 °C	-40 °C	36 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	1	72 V	ITE (Commercial)	400 mA	2 W	5 V	Through Hole
Murata Power Solutions Inc. NDL4815SC	Isolated Module		1000 V	8-SIP Module	7 Leads	85 °C	-40 °C	36 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	1	72 V	ITE (Commercial)	134 mA	2 W	15 V	Through Hole
Murata Power Solutions Inc. NDL4812SC	Isolated Module	81 %	1000 V	8-SIP Module	7 Leads	85 °C	-40 °C	36 V	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	1	72 V	ITE (Commercial)	167 mA	2 W	12 V	Through Hole
