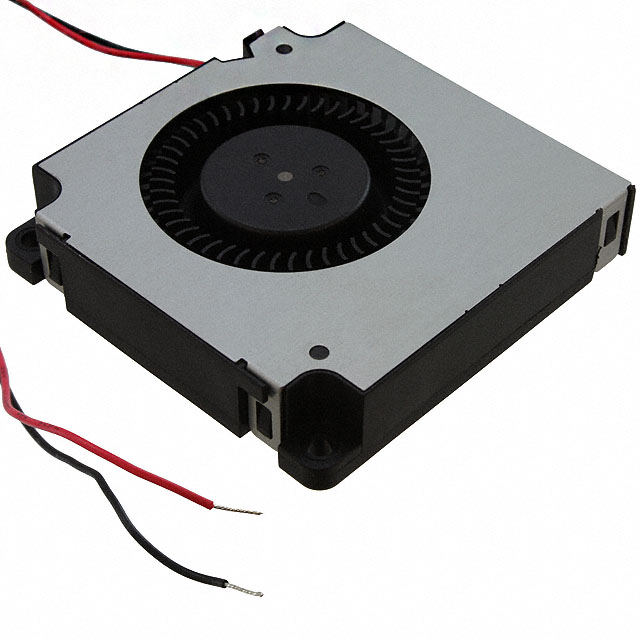

BFB0512HHA-C

Active

Delta Electronics

FAN BLOWER 50X10.3MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Datasheet +2

BFB0512HHA-C

Active

Delta Electronics

FAN BLOWER 50X10.3MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB0512HHA-C

Air Flow	0.112 m³/min
Air Flow	4 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	37.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.92 W
RPM	5900 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	196.8 Pa
Static Pressure	0.79 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	5 VDC
Weight	22.68 g
Weight	0.05 lb
Width [y]	10.3 mm

BFB0512 Series

Part	Lifetime @ Temp.	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Material - Blade	Current Rating (Amps)	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Power (Watts)	Noise	Features	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Voltage - Rated	Termination	Approval Agency	Material - Frame	Bearing Type	Static Pressure	Static Pressure	Size / Dimension	Air Flow	Width [x]
Delta Electronics BFB0512MA-CR00	30000 Hrs	Blower	50 mm	50 mm	Plastic	70 mA	10.3 mm	13.2 VDC	7 V	22.68 g	0.05 lb	840 mW	28 dB	Locked Rotor Sensor	2.9 CFM	0.081 m³/min	70 °C	70 °C	-10 °C	-10 °C	4300 RPM	12 VDC	3 Wire Leads	CE CSA UL VDE	Plastic	Ball	95.4 Pa	0.383 in H2O
Delta Electronics BFB0512MD	50000 Hrs	Blower	50 mm	50 mm	Plastic		20 mm	13.8 VDC	5 VDC	35.38 g	0.078 lb	1.56 W	32 dB		4.9 CFM	0.137 m³/min	70 °C	70 °C	-10 °C	-10 °C	4100 RPM	12 VDC	2 Wire Leads	CE CSA UL VDE	Plastic	Ball	96.4 Pa	0.387 in H2O	Square/Rounded
Delta Electronics BFB0512MA-C	30000 Hrs	Blower	50 mm	50 mm	Plastic	70 mA	10.3 mm	13.2 VDC	7 V	22.68 g	0.05 lb	840 mW	28 dB		2.9 CFM	0.081 m³/min	70 °C	70 °C	-10 °C	-10 °C	4300 RPM	12 VDC	2 Wire Leads	CE CSA UL VDE	Plastic	Ball	95.4 Pa	0.383 in H2O
Delta Electronics BFB0512HHA-C	30000 Hrs	Blower	50 mm	50 mm	Plastic		10.3 mm	13.2 VDC	5 VDC	22.68 g	0.05 lb	1.92 W	37.5 dB(A)		4 CFM	0.112 m³/min	70 °C	70 °C	-10 °C	-10 °C	5900 RPM	12 VDC	2 Wire Leads	CE CSA UL VDE	Plastic	Ball	196.8 Pa	0.79 in H2O
Delta Electronics BFB0512HA-C	30000 Hrs	Blower	50 mm	50 mm	Plastic	120 mA	10.3 mm	13.2 VDC	5 VDC	22.68 g	0.05 lb	1.44 W	32.5 dB		3.5 CFM	0.098 mł/min	70 °C	70 °C	-10 °C	-10 °C	5100 RPM	12 VDC	2 Wire Leads	CE CSA UL VDE	Plastic	Ball	140.2 Pa	0.563 in H2O
Delta Electronics BFB0512HHD	50000 Hrs	Blower	50 mm	50 mm	Plastic		20 mm	13.8 VDC	5 VDC	35.38 g	0.078 lb	1.92 W	36.5 dB(A)				70 °C	70 °C	-10 °C	-10 °C	4900 RPM	12 VDC	2 Wire Leads	CE CSA UL VDE	Plastic	Ball	158.4 Pa	0.636 in H2O	Square/Rounded
Delta Electronics BFB0512VHD-F00	50000 Hrs	Blower	53.3 mm	52.1 mm	Plastic	0.23 A	20 mm	13.8 VDC	5 VDC	25.85 g	0.057 lb	2.76 W	32 dB	Locked Rotor Protection Speed Sensor (Tach)	6.8 CFM	0.19 m³/min	70 °C	70 °C	-10 °C	-10 °C	5300 RPM	12 VDC	3 Wire Leads	CE CSA UL VDE	Plastic	Ball	182.3 Pa	0.732 in H2O
Delta Electronics BFB0512HA-CF00	30000 Hrs	Blower	50 mm	50 mm	Plastic	120 mA	10.3 mm	13.2 VDC	5 VDC	22.68 g	0.05 lb	1.44 W	32.5 dB	Locked Rotor Protection Speed Sensor (Tach)	3.5 CFM	0.098 mł/min	70 °C	70 °C	-10 °C	-10 °C	5100 RPM	12 VDC	3 Wire Leads	CE CSA UL VDE	Plastic	Ball	140.2 Pa	0.563 in H2O
Delta Electronics BFB0512H-R00	50000 Hrs	Blower	51 mm	51.3 mm	Plastic			13.8 VDC	10 VDC	28.12 g	0.062 lb	1.92 W	38 dB(A)	Locked Rotor Sensor		3.9 CFM	70 °C	70 °C	-10 °C	-10 °C	5500 RPM	12 VDC	3 Wire Leads	CE CSA UL VDE	Plastic	Ball			Square/Rounded	0.109 m³/min	15 mm
Delta Electronics BFB0512VHD-SP01	50000 Hrs	Blower	53.3 mm	52.1 mm	Plastic	0.2 A		12.8 VDC	10.8 VDC	25.85 g	0.057 lb	2.4 W	32 dB	Locked Rotor Protection PWM Control Speed Sensor (Tach)	6.1 CFM	0.171 m³/min	70 °C	70 °C	-10 °C	-10 °C	5500 RPM	12 VDC	4 Wire Leads	CE CSA UL VDE	Plastic	Ball	160.4 Pa	0.644 in H2O			31.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.33
		10	$ 14.63
		25	$ 13.24
		50	$ 12.20
		100	$ 10.94
		336	$ 10.11
		672	$ 9.41

Description

General part information

BFB0512 Series

Fan Blower 12VDC Square - 50mm L x 50mm H Ball 4.0 CFM (0.112m³/min) 2 Wire Leads
