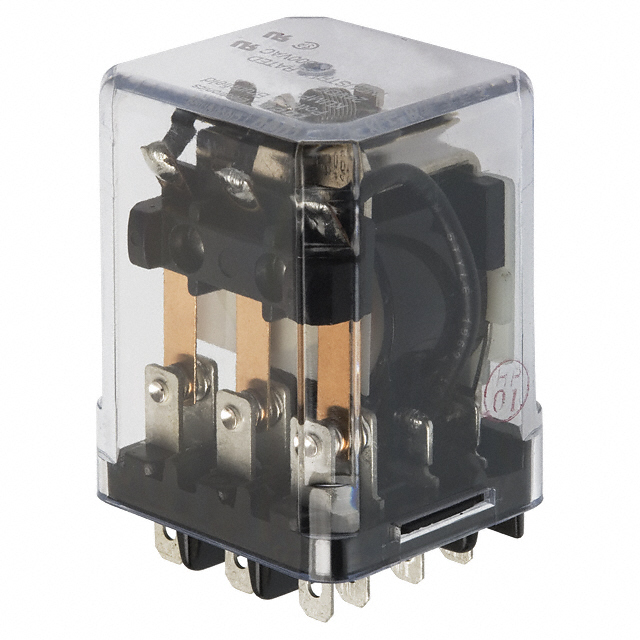

KUMP-11A18-240
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 15A 240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KUMP-11A18-240 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 12 mA |
| Coil Insulation | Class B |
| Coil Resistance | 7.2 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 240 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 15 A |
| Load - Max Switching | 4155 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 204 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.18 | |
| 10 | $ 28.67 | |||
| 25 | $ 27.16 | |||
| 50 | $ 25.65 | |||
| 100 | $ 24.14 | |||
| 250 | $ 22.63 | |||
Description
General part information
KUMP-11 Series
General Purpose Relay DPDT (2 Form C) 240VAC Coil Socketable
